Controls for APRILIA RXV-SXV Vdb-Merriman from 2008

Controls

1

Handlebar

855049

Not Available

2

Upper U-bolt

853567

Not Available

3

Screw w/ flange M8x35 titan

853534

Not Available

3

Vis bride

AP8152289

$3,65 Unit Price incl. VAT

4

RH lights selector

AP9100514

$69,32 Unit Price incl. VAT

5

LH lights selector

855043

$82,22 Unit Price incl. VAT

6

Throttle+hand grip

855271

Not Available

6

Throttle+hand grip

AP9100481

Not Available

7

Clutch control

AP9100484

Not Available

7

Clutch control racing

855270

Not Available

8

Levier embrayage

AP9100939

$31,05 Unit Price incl. VAT

9

Cavalier

AP9100940

$10,76 Unit Price incl. VAT

10

Vis bride

AP8152280

$0,25 Unit Price incl. VAT

10

Screw w/ flange M6x25 titan

853598

Not Available

11

Clutch cable register

896503

Not Available

12

Clutch control transmission

855272

Not Available

12

Clutch control

853662

Not Available

13

Transm. commande gaz

AP9100802

$36,15 Unit Price incl. VAT

14

Miroir rétroviseur dte

AP8104921

$43,20 Unit Price incl. VAT

15

Miroir rétroviseur gche

AP8104922

$43,20 Unit Price incl. VAT

16

Handguards, pair

851098

Not Available

16

Handguards, pair

851083

Not Available

17

TUBE GAZ

851359

$8,65 Unit Price incl. VAT

18

U-bolt

851360

Not Available

19

Handgrip pair, black

AP8218628

Not Available

20

Map switch

858247

Not Available

21

Ressort

AP9100519

$5,73 Unit Price incl. VAT

22

Map switch Lower shell

858387

Not Available

23

INTERRUPTEUR ENGINE-STOP

AP9100425

$29,06 Unit Price incl. VAT

24

Start pushbutton

AP9100426

Not Available

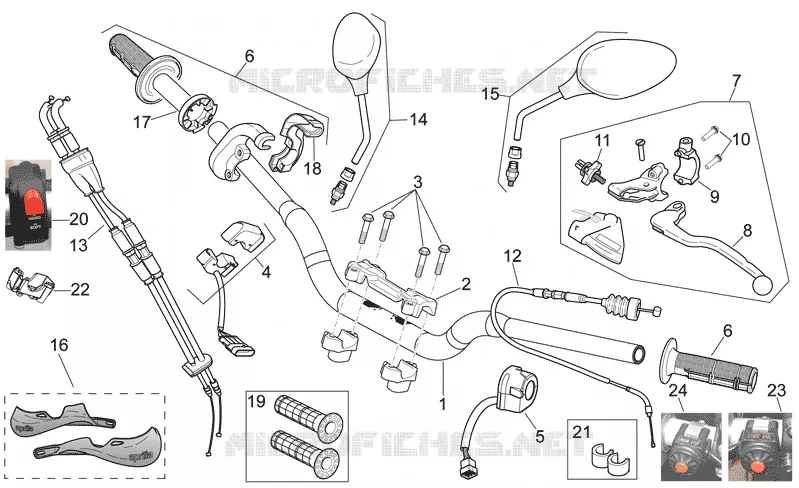

Find the detailed Controls APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
