1
Engine displacement
125
2
Model
LEONARDO
3
Year
1998
4
Trim
Leonardo
5
Parts Catalog

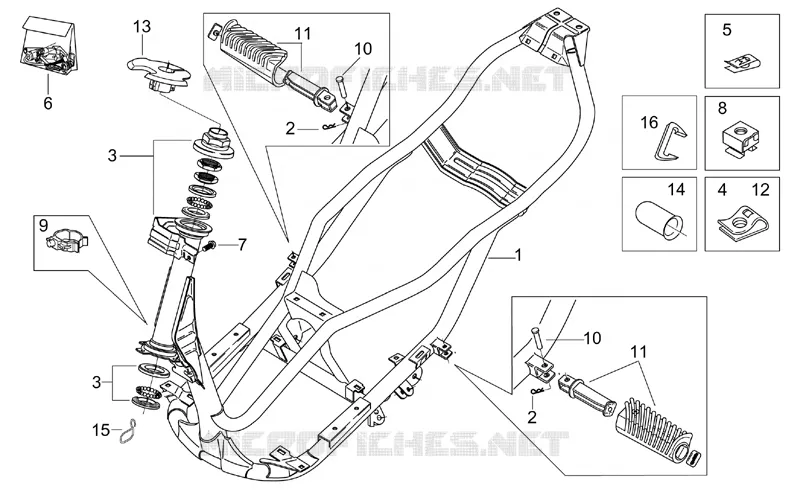

Frame
6
Parts Diagram
Parts Catalog
Dashboard
by
Cylinder head
Frame
1
2
2
3
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
1
Frame with electro-coating
AP8146140
Not Available
2
Split pin
AP8201643
$5,38 Unit Price incl. VAT
3
Ball ring set, complete
AP8123685
$232,20 Unit Price incl. VAT
4
Clip M6
AP8102376
Not Available
5
Screw clip D5,5*
AP8201763
$3,65 Unit Price incl. VAT
6
Lock kit
AP8102702
Not Available
7
Screw w/ flange M5x15
AP8152273
$0,16 Unit Price incl. VAT
8
Captive nut M6
AP8221213
$3,65 Unit Price incl. VAT
9
Cable-guide
AP8220269
$5,38 Unit Price incl. VAT
10
Footrest pin
AP8135677
$5,38 Unit Price incl. VAT
11
Rear footrests, pair
AP8135975
Not Available
12
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
13
Front fairing lower lockup
AP8138433
Not Available
14
Rubber cup
AP8220460
$5,38 Unit Price incl. VAT
15
Cable-guide
AP8121308
Not Available
16
Plugs spring
AP8121309
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
