1
Engine displacement
125
2
Model
LEONARDO
3
Year
1998
4
Trim
Leonardo
5
Parts Catalog

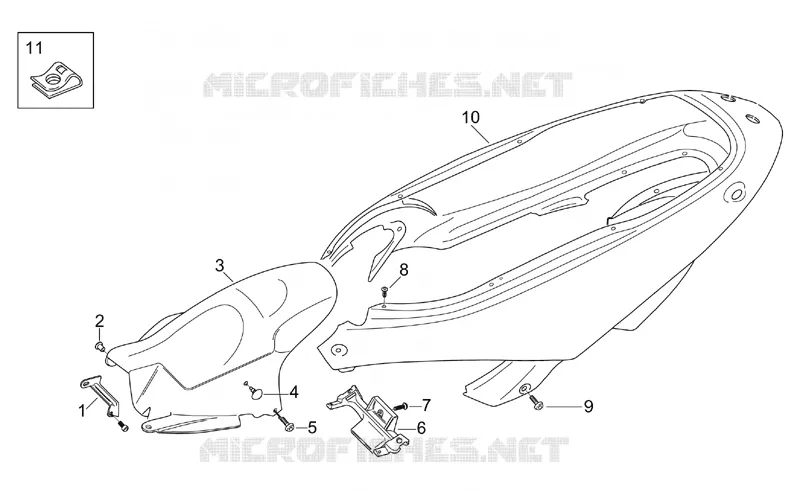

Rear body I
6
Parts Diagram
Parts Catalog
RH Semi-crankcase II
by
Lights I
Rear body I
1
2
3
4
5
6
7
8
9
10
11
1
Rear black mudguard support
AP8134362
Not Available
2
T bush *
AP8121075
$3,65 Unit Price incl. VAT
3
Rear mudguard, grey
AP8126642
Not Available
4
Rubber spacer
AP8120001
$0,77 Unit Price incl. VAT
5
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
6
Rear fairing support
AP8138718
Not Available
7
Phillips screw, SWP M5x20
AP8152329
$0,69 Unit Price incl. VAT
8
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
9
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
10
Rear fairing, brio yellow
AP8139203
Not Available
10
Rear fairing, l. red
AP8138851
Not Available
10
Rear fairing, cr.green
AP8138988
Not Available
10
Rear fairing, s. blue
AP8138605
Not Available
10
Rear fairing, grey
AP8138616
Not Available
10
Rear fairing, mallow violet
AP8139209
Not Available
10
Rear fairing, miami cyan
AP8139215
Not Available
11
Clip M6
AP8102376
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
