Parts Catalog
Expansion tank 96-97
6
Parts Diagram
Parts Catalog
Acc. - Top/cases, side cases
by
Primary transm. I
Expansion tank 96-97
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
1
Expansion tank
AP8138946
$45,45 Unit Price incl. VAT
2
Rad cap w/ vent
AP8201463
Not Available
3
Inner and outer water hoses
AP8120883
Not Available
4
Tee union D20
AP8101916
Not Available
5
Cyl. head outlet hose
AP8120885
Not Available
6
Pump inlet hose
AP8120886
Not Available
7
Water cooler outlet hose
AP8144057
Not Available
8
Water cooler outlet hose
AP8120882
Not Available
9
Expansion tank hose
AP8120983
Not Available
10
Breather pipe
AP8144056
Not Available
11
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
12
Screw w/ flange M6x30
AP8152281
$1,70 Unit Price incl. VAT
13
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
14
Hose clamp 17-25
AP8102732
$3,65 Unit Price incl. VAT
15
Hose clamp 12,5x8
AP8102239
$0,84 Unit Price incl. VAT
16
Water cooler-pump tube
AP8144080
Not Available
17
Water cooler-head tube
AP8144079
Not Available
18
Water tubes holder
AP8134460
$5,38 Unit Price incl. VAT
19
Cable-guide D22
AP8201807
$5,38 Unit Price incl. VAT
20
Cable-guide D8
AP8201808
$5,38 Unit Price incl. VAT
21
Water cooler-pump tube
AP8144099
$29,57 Unit Price incl. VAT
22
Water cooler-head tube
AP8144098
$27,32 Unit Price incl. VAT
23
Motor-pump valve tube
AP8144100
$5,21 Unit Price incl. VAT
24
Thermostat valve set
AP8102614
$67,34 Unit Price incl. VAT
25
Hose clip D25x35
AP8102810
Not Available

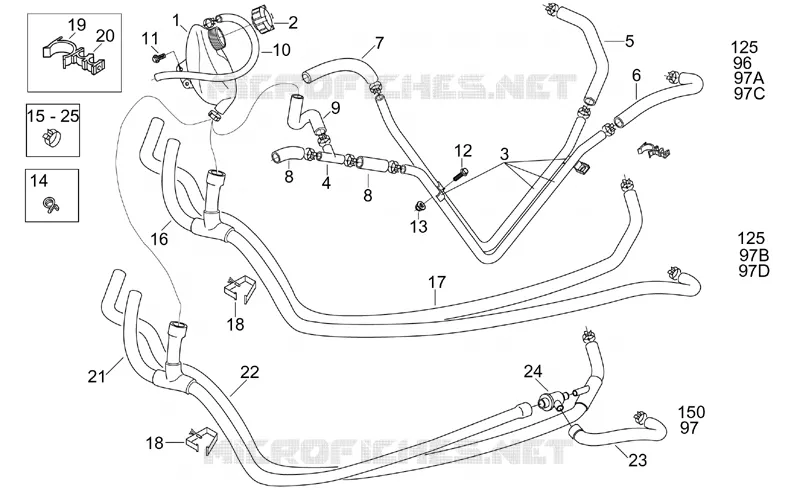

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
