Parts Catalog
Body
6
Parts Diagram
Parts Catalog
Cdi magneto assy
by
Front fork M/N IM B
Body
55
54
52
51
51
50
49
48
47
46
45
44
43
42
41
40
40
39
38
37
36
35
34
33
33
32
31
31
30
29
28
27
26
25
24
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Fuel tank
AP8231027
Not Available
2
Fuel cock
AP8201397
Not Available
3
Lat.frng fix.pipe
AP8120699
$5,38 Unit Price incl. VAT
4
Joint orifice rempl.
AP8120702
$5,38 Unit Price incl. VAT
5
Cable-guide
AP8120512
Not Available
6
Crom.tank plug
AP8102228
Not Available
7
Saddle, violet
AP8229083
Not Available
7
Saddle, prune
AP8229113
Not Available
7
Driver saddle, black
AP8229067
Not Available
8
Rear fairing, alum.
AP8230695
Not Available
8
Rear fairing, violet/wh./black
AP8231078
Not Available
8
Rear fairing, black/red
AP8230937
Not Available
8
Rear fairing, violet/green
AP8230875
Not Available
9
RH fairing, white/red
AP8231081
Not Available
9
RH fairing, white/red
AP8230939
Not Available
9
RH fairing, aly./violet
AP8230699
Not Available
9
RH fairing, alu./red
AP8230877
Not Available
10
LH fairing, white/red
AP8231082
Not Available
10
RH fairing, aly./violet
AP8230700
Not Available
10
RH fairing, alu./red
AP8230878
Not Available
10
LH fairing, white/red
AP8230940
Not Available
11
Windshield, black/violet
AP8230941
Not Available
11
Windshield, aluminium/violet
AP8230701
Not Available
11
Windshield, green/aluminium
AP8131560
Not Available
11
Windshield, white/green
AP8231160
Not Available
12
RH Dashboard lockup
AP8230534
Not Available
13
RH mirror, black
AP8102182
Not Available
14
LH mirror, black
AP8102183
Not Available
15
Support retroviseur
AP8102152
$0,69 Unit Price incl. VAT
16
Gasket
AP8101943
Not Available
17
Windscreen plexiglass
AP8131134
Not Available
18
Tubulure remplissage
AP8121784
$15,31 Unit Price incl. VAT
19
Ring nut fuel filler cap
AP8102361
Not Available
20
Toolkit
AP8201269
Not Available
21
Elastique support feu
AP8120177
$5,38 Unit Price incl. VAT
22
Battery hook
AP8101313
Not Available
23
Pin
AP8121778
Not Available
24
Caoutchouc réserv.
AP8120557
$6,70 Unit Price incl. VAT
25
Black toolbox
AP8201401
Not Available
26
Fuel tap union
AP8201400
Not Available
26
Fuel tap union
AP8102267
Not Available
27
Front mudguard, violet
AP8226189
Not Available
27
Front mudguard, violet
AP8226216
Not Available
27
Front mudguard, white
AP8226200
Not Available
27
Front mudguard, alum.
AP8226155
Not Available
28
Rear fairing, alum.
AP8230697
Not Available
28
Rear fairing, red
AP8230938
Not Available
28
Rear fairing, violet
AP8231079
Not Available
28
Rear fairing, violet
AP8230876
Not Available
29
Number plate holder, black
AP8226134
Not Available
30
Garde-boue arrière noir;
AP8226126
$6,24 Unit Price incl. VAT
31
Caoutchouc avec insert
AP8120531
$6,30 Unit Price incl. VAT
32
Catadioptre
AP8112560
$2,13 Unit Price incl. VAT
33
Caoutchouc
AP8120030
$0,85 Unit Price incl. VAT
34
Front fairing, black
AP8230693
Not Available
34
Front fairing, white
AP8230594
Not Available
35
LH Dashboard lockup
AP8230595
Not Available
36
Clip
AP8102375
$0,69 Unit Price incl. VAT
37
Tank cover, violet/alum.
AP8230694
Not Available
37
Tank cover, violet/white
AP8230874
Not Available
37
Tank cover, violet/white
AP8230936
Not Available
37
Tank cover, violet/white
AP8231168
Not Available
38
Saddle bottom
AP8220267
Not Available
39
Decal set
AP8215104
Not Available
39
Decal set
AP8211961
Not Available
39
Decal set
AP8215140
Not Available
39
Decal set
AP8215312
Not Available
40
Rondelle
AP8120591
$0,25 Unit Price incl. VAT
41
O-ring 3050
AP8120796
Not Available
42
Saddle rubber
AP8120583
Not Available
43
Saddle lock
AP8102157
Not Available
44
Platine serr.selle;
AP8135260
$5,38 Unit Price incl. VAT
45
Lock kit
AP8201434
Not Available
46
Caoutchouc
AP8220241
$6,30 Unit Price incl. VAT
47
T bush *
AP8121673
$5,90 Unit Price incl. VAT
48
T bush *
AP8121673
$5,90 Unit Price incl. VAT
49
Radiator grille, white
AP8230312
Not Available
49
Water cooler grille
AP8230692
Not Available
50
Grille, black
AP8230788
Not Available
51
Vis
AP8152268
$3,38 Unit Price incl. VAT
52
Clip M2,8
AP8102232
Not Available
54
Rondelle évent.
AP8221312
$0,34 Unit Price incl. VAT
55
Ecrou bas
AP8152194
$1,10 Unit Price incl. VAT

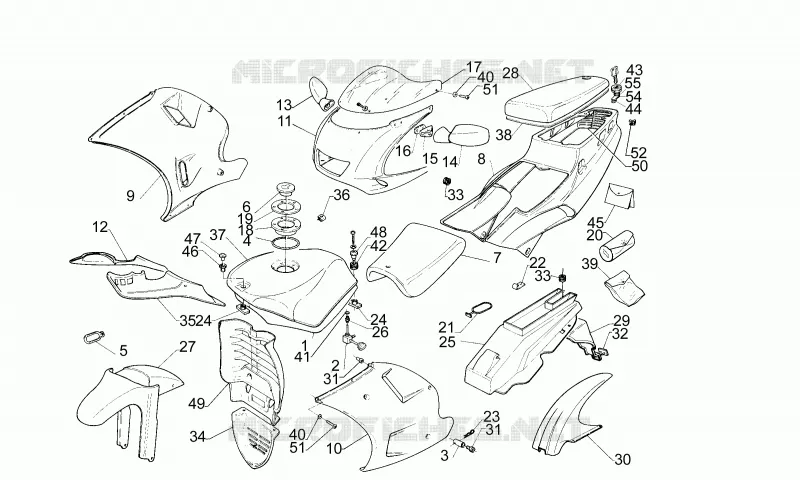

Find the detailed Body APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
