1
Engine displacement
50
2
Model
AF1
3
Year
1991
4
Trim
AF1 FUTURA
5
Parts Catalog
Mix oil
6
Parts Diagram
Parts Catalog
Crank-case
by
Starter motor
Mix oil
1
1
2
2
3
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
17
18
19
20
21
23
24
25
26
27
28
29
30
33
35
36
37
38
39
40
41
42
43
44
45
1
Blue steel washer D8,2x15x1
AP8206345
$3,65 Unit Price incl. VAT
2
Blue steel washer D8,4x16
AP8206277
$5,20 Unit Price incl. VAT
3
Outside circlip D8
AP8501467
$3,65 Unit Price incl. VAT
4
Idle gear assy Z=13/24
AP8206327
Not Available
5
Water pump driven gear Z=30
AP8206328
Not Available
6
Oil filler plug
AP8206245
Not Available
7
Cable guide+sc.+nut
AP8509334
$29,76 Unit Price incl. VAT
8
Adjuster bridge
AP8206235
Not Available
9
O-ring D12,3x2,6
AP8206309
Not Available
10
Oil plug seal D8x14
AP8502759
Not Available
11
Joint couvercle
AP8206287
$15,74 Unit Price incl. VAT
12
Clutch cover
AP8206315
Not Available
13
Oil plug seal D6x12
AP8502758
Not Available
14
Cap screw+shank M6x6
AP8502555
Not Available
15
Vis
AP8502566
$3,65 Unit Price incl. VAT
16
Oil seal D10x18x8
AP8509177
Not Available
17
Roller D3x21,8
AP8508669
$3,65 Unit Price incl. VAT
18
Water pump shaft+Impeller
AP8206335
Not Available
19
Pump body roller D4x10
AP8206338
Not Available
20
Water pump body seal
AP8206334
Not Available
21
Water pump casing
AP8206339
Not Available
23
O-ring
AP8206348
Not Available
24
Screw M6x12
AP8206202
Not Available
25
Pump inlet hose
AP8206320
Not Available
26
Screw M6x25
AP8206508
Not Available
27
Vis
AP8502571
$3,65 Unit Price incl. VAT
28
Screw M6x25
AP8206346
Not Available
29
pipe 650 mm
AP8206321
Not Available
30
Hose clamp 4,1x5,1x4
AP8509497
Not Available
33
Pump gear Z=22
AP8508872
$11,77 Unit Price incl. VAT
35
Tachometer drive spindle
AP8206299
Not Available
36
Screw
AP8502562
Not Available
37
Cable adjuster rubber
AP8508667
Not Available
38
O-ring D19x1,2
AP8502665
Not Available
39
Oil pump
AP8508863
Not Available
40
Oil pump cover, blue
AP8206238
Not Available
41
Screw
AP8206280
Not Available
42
Hose clamp
AP8206342
$3,65 Unit Price incl. VAT
43
Oil pipe L=120
AP8508881
Not Available
44
Oil pipe grommet
AP8508668
Not Available
45
Clutch cover cpl., black
AP8206382
Not Available

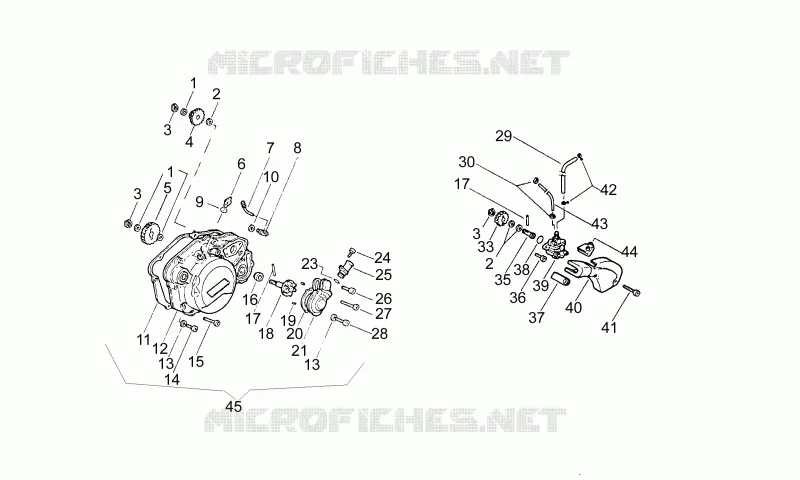

Find the detailed Mix oil APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
