Engine displacement
50
2
Model
AF1
3
Year
1991
4
Trim
AF1 FUTURA
5
Parts Catalog
Crank-case
6
Parts Diagram
Parts Catalog
Drive shaft - Cylinder
by
Mix oil
Crank-case
1
1
2
3
4
5
5
6
7
8
9
10
11
13
13
14
14
15
16
17
18
19
20
21
22
22
23
24
25
26
26
28
29
30
31
32
33
34
36
37
38
39
40
41
42
42
43
44
46
48
49
51
52
53
54
55
55
56
57
58
59
59
60
61
62
63
65
66
67
68
69
70
71
72
73
74
75
1
Clutch lever cpl.
AP8206257
Not Available
2
Clutch lever return spring
AP8206259
Not Available
3
Blue steel washer D15x25x0,5
AP8206278
Not Available
4
Oil seal D15x24x5
AP8509179
$9,50 Unit Price incl. VAT
5
Oil breather union
AP8206340
Not Available
6
Neutral indicator switch+seal
AP8206296
$16,59 Unit Price incl. VAT
7
Clutch spring
AP8206258
Not Available
8
Screw
AP8206279
Not Available
9
Gasket 9,9x16x1
AP8206288
Not Available
10
Screw M6x40
AP8206276
Not Available
11
Outside circlip D17
AP8501484
Not Available
12
Intermediate gear Z=13
AP8206355
$20,11 Unit Price incl. VAT
12
Intermediate gear Z=11
AP8206313
Not Available
12
Pinion Z=14
AP8206377
Not Available
12
Intermediate gear Z=12
AP8206376
Not Available
13
Crankcase pin D11,5x12
AP8206295
Not Available
14
Crankcase assy
AP8206378
Not Available
15
Ball bearing 6202
AP8510027
Not Available
16
Roller cage DB14-12
AP8206281
Not Available
17
Balance shaft
AP8206231
Not Available
18
Key Balance shaft 4x4x8
AP8206263
$4,82 Unit Price incl. VAT
19
Bearing D17x40x12
AP8510039
Not Available
20
Primary gear shaft
AP8206380
Not Available
20
Primary gear shaft
AP8206317
Not Available
21
Push rod D5x101,6
AP8206294
Not Available
22
Bearing D17x40x12
AP8502626
Not Available
23
Conical spring washer
AP8206260
Not Available
24
Ball 3/16"
AP8502652
Not Available
25
Clutch push rod D13
AP8502836
Not Available
26
Blue steel washer D17,2x30
AP8502498
Not Available
28
Outside circlip D17
AP8206233
Not Available
29
Driven shaft
AP8206318
Not Available
30
Sliding coupling 3-4 spd.
AP8206330
Not Available
31
Outside circlip D18
AP8501471
Not Available
32
Sliding coupling
AP8206329
Not Available
33
Blue steel washer D13x25
AP8206347
Not Available
34
Oil seal D17x35x7
AP8206291
Not Available
36
Gear 2 v.ta' Z=31
AP8206371
Not Available
36
Gear 2 v.ta' Z=31
AP8206325
Not Available
37
Gear 3 v.ta' Z=26
AP8206326
Not Available
37
Gear 3 v.ta' Z=26
AP8206372
Not Available
38
Blue steel washer D18x30
AP8502500
Not Available
39
1st wheel gear Z=37
AP8206324
Not Available
40
Bush
AP8206333
Not Available
41
Rondelle évent.int.
AP8502473
$3,65 Unit Price incl. VAT
42
Fork 3-4 speed
AP8206246
Not Available
43
Fork guide pin
AP8206298
$16,44 Unit Price incl. VAT
44
Nut M7x5,5
AP8502414
Not Available
45
Gear indicator spring
AP8206261
Not Available
46
Blue steel washer D10x16
AP8206269
$3,65 Unit Price incl. VAT
48
Ball D9
AP8206283
Not Available
49
Pin retainer
AP8206336
Not Available
51
Fork guide pin
AP8502826
Not Available
52
Hex screw M7x25
AP8502584
Not Available
53
Joint vis
AP8502757
$3,65 Unit Price incl. VAT
54
Washer D5x15x2
AP8206272
Not Available
55
Pin D8,51x7,6
AP8509209
$4,82 Unit Price incl. VAT
56
Blue steel washer D12,3x22
AP8206344
$3,65 Unit Price incl. VAT
57
Balance shaft driv. Gear Z=34
AP8206308
Not Available
58
Flanged nut M12x1,25
AP8206343
$10,95 Unit Price incl. VAT
59
Clutch - pair Z=20/71
AP8206310
Not Available
60
Nut M12x1 H=5
AP8206266
$3,65 Unit Price incl. VAT
61
Nut M12x1,25x7
AP8206265
$4,36 Unit Price incl. VAT
62
Balance shaft driven gear Z=34
AP8206253
Not Available
63
Adjuster screw M14x1,25
AP8502533
$5,90 Unit Price incl. VAT
65
Oil plug seal D8x14
AP8502759
Not Available
66
Oil drain hex screw M8x10
AP8502586
$3,65 Unit Price incl. VAT
67
Spacer D13x30x4
AP8206267
$18,12 Unit Price incl. VAT
68
Tamb. embr.alu
AP8206256
Not Available
69
Washer D12
AP8206271
$5,20 Unit Price incl. VAT
70
Disque embrayage mené
AP8206247
$18,14 Unit Price incl. VAT
71
Driving clutch disc
AP8206322
Not Available
72
Clutch pressure plate
AP8206248
Not Available
73
Nut M14x1,25x6
AP8502432
Not Available
74
Secondary shaft cpl.
AP8206351
Not Available
74
Secondary shaft cpl.
AP8206312
Not Available
75
Gear box assy 3 v.tà
AP8206254
Not Available
75
Gear box assy
AP8206373
Not Available

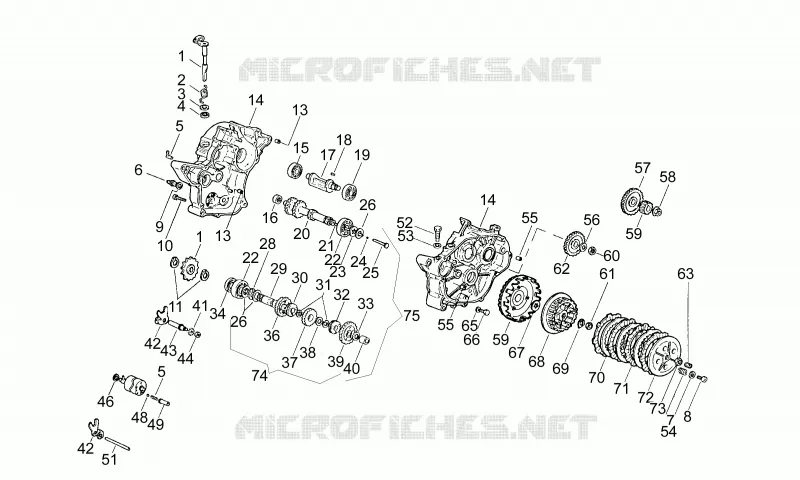

Find the detailed Crank-case APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
