1
Engine displacement
50
2
Model
AREA-51
3
Year
2000
4
Trim
Area 51
5
Parts Catalog
Central crank-case set
6
Parts Diagram
Parts Catalog
Plate set and handbook
by
Cylinder head I
Central crank-case set
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
1
Screw M6x12
AP8206202
Not Available
2
Oil seal retainer plate
AP8206138
Not Available
3
Screw M6x35
AP8502567
Not Available
4
Case w b. hngr-pair
AP8206859
Not Available
5
Crankcase pin D12x16
AP8206169
Not Available
6
Oil filler plug
AP8206475
$5,53 Unit Price incl. VAT
7
O-ring D13,3x2,4
AP8206482
Not Available
8
Sealed bearing D17x35x10
AP8206481
Not Available
9
Bearing D17x40x12
AP8206558
Not Available
10
Oil seal
AP8206215
$7,94 Unit Price incl. VAT
11
Inside circlip D40
AP8501481
$5,20 Unit Price incl. VAT
12
pipe 650 mm
AP8222474
Not Available
13
Vacuum pipe union
AP8222475
Not Available
14
Vacuum pipe Brass union
AP8220479
Not Available
15
Roller D3x11,8
AP8206578
Not Available
16
Union+Breather pipe 10x14x210
AP8206131
Not Available
17
Screw w/ flange M8x15
AP8206203
Not Available
18
Gasket 8,2x15x1,2
AP8206488
$3,65 Unit Price incl. VAT

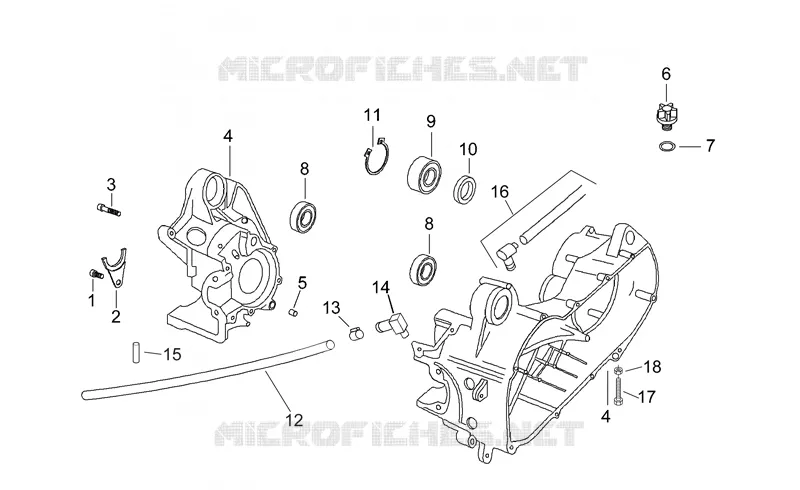

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
