1
Engine displacement
50
2
Model
AREA-51
3
Year
2000
4
Trim
Area 51
5
Parts Catalog

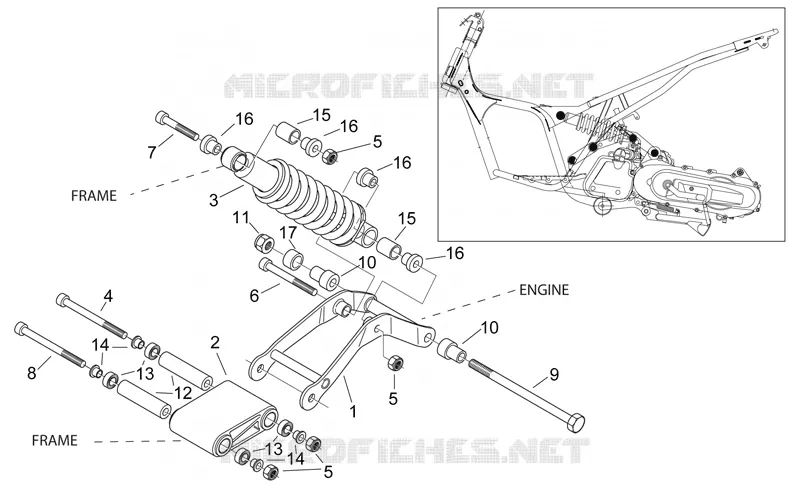

Connect. Elem.ts - Rear shock abs.
6
Parts Diagram
Parts Catalog
Central stand - Engine connecting
by
Front shock absorber I
Connect. Elem.ts - Rear shock abs.
1
2
3
4
5
5
5
6
7
8
9
10
10
11
12
13
13
14
14
15
15
16
16
16
16
17
1
Double conrod
AP8232993
Not Available
2
Single conrod
AP8232992
Not Available
3
Shock absorber
AP8203746
Not Available
3
Shock absorber
AP8203926
Not Available
4
Hex socket screw M10x115*
AP8150092
Not Available
5
Low self-locking nut
AP8150436
$3,65 Unit Price incl. VAT
6
Hex socket screw M10x90
AP8150287
$3,70 Unit Price incl. VAT
7
screw M10x60
AP8150049
$3,70 Unit Price incl. VAT
8
Hex socket screw M10x120
AP8150310
$3,65 Unit Price incl. VAT
9
Hex screw M12X200
AP8221245
Not Available
10
Eng. connecting spacer
AP8221269
Not Available
11
Low self-locking nut M12*
AP8150432
$3,65 Unit Price incl. VAT
12
Single connect.rod spacer
AP8221254
Not Available
13
Bearing
AP8110089
Not Available
14
T bush
AP8221271
Not Available
15
Silent-block
AP8203826
$5,38 Unit Price incl. VAT
16
T bush
AP8203931
Not Available
17
Spacer
AP8221287
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
