Parts Catalog

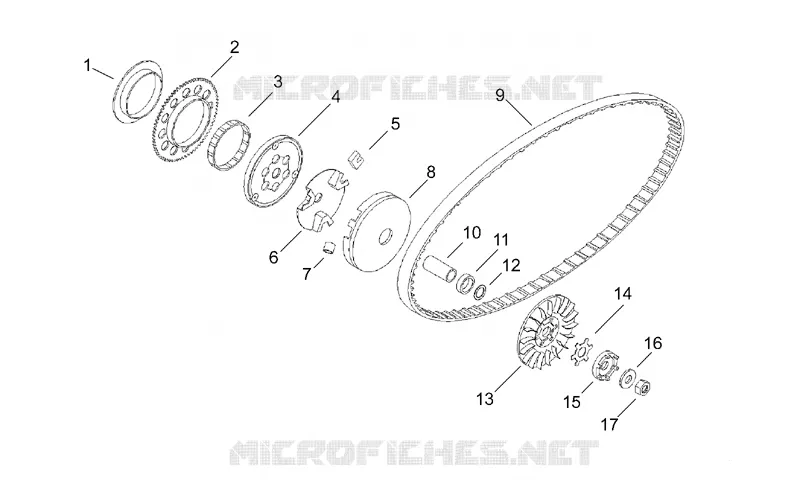

Variator
6
Parts Diagram
Parts Catalog
Covers - kick starter
by
Clutch I
Variator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
T bush
AP8206479
Not Available
2
Starter motor gear Z=71
AP8206144
Not Available
3
Cage D57x61x10
AP8206210
Not Available
4
Starter clutch assy.
AP8206147
$56,28 Unit Price incl. VAT
5
Slider
AP8206698
$5,53 Unit Price incl. VAT
6
Ramp plate
AP8206136
$26,65 Unit Price incl. VAT
7
Pin roller d9,8
AP8206419
Not Available
7
Pin roller D8,8
AP8206701
$6,35 Unit Price incl. VAT
8
Pulley assy., driving
AP8222335
Not Available
9
Vee-Belt
AP8206109
$78,30 Unit Price incl. VAT
10
Bush 13x18x38,2
AP8222336
Not Available
11
Spacer D18x23x6,5
AP8206420
$9,41 Unit Price incl. VAT
11
Spacer D18x23x5
AP8206478
Not Available
12
Blue steel washer D13x18,5x1
AP8206702
Not Available
13
Fixed pulley
AP8206116
Not Available
14
Front pulley drive plate
AP8206140
$5,53 Unit Price incl. VAT
15
Toothed start clutch cup
AP8206141
$10,00 Unit Price incl. VAT
16
Conical spring washer
AP8206204
$5,20 Unit Price incl. VAT
17
Nut M10x1,25
AP8206183
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
