1
Engine displacement
125
2
Model
ATLANTIC
3
Year
2010
4
Trim
Atlantic E3
5
Parts Catalog
Rear electrical system
6
Parts Diagram
Parts Catalog
Ignition unit
by
Rear electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
22
23
23
1
Relay 12V-150A
AP8112927
$47,89 Unit Price incl. VAT
2
Relais 12V/30A
AP8224462
$14,17 Unit Price incl. VAT
3
Breather pipe 4x8
AP8220263
Not Available
4
El.components support
AP8179526
Not Available
5
Voltage regulator
58090R
Not Available
6
BATTERIE YUASA 12V-12 AH YB12 AL-A2
AP8112920
$131,36 Unit Price incl. VAT
7
Electronic ignition unit
58135R
Not Available
8
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
9
Socket
AP8124768
Not Available
10
Caoutchouc p-fusibles
AP8112811
$6,40 Unit Price incl. VAT
11
Caoutchouc p-fusibles
AP8120754
$6,30 Unit Price incl. VAT
12
FUSIBLE 15A
290860
$5,73 Unit Price incl. VAT
13
Fuse 20A
495357
$1,02 Unit Price incl. VAT
14
Caoutchouc
AP8220283
$0,75 Unit Price incl. VAT
15
Câblage masse-batterie
AP8127245
$19,99 Unit Price incl. VAT
16
VIS
598839
$0,09 Unit Price incl. VAT
17
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
18
Câblage relais-démarr.
AP8127246
$19,99 Unit Price incl. VAT
19
Câblage batterie-relais
AP8127247
$19,99 Unit Price incl. VAT
20
Câblage lumière plaque;
AP8124976
$7,69 Unit Price incl. VAT
21
Capuchon borne
AP8120218
$5,38 Unit Price incl. VAT
22
Ecrou
AP8150026
$0,16 Unit Price incl. VAT
23
Spring washer 6,4x11x0,5*
AP8150429
Not Available

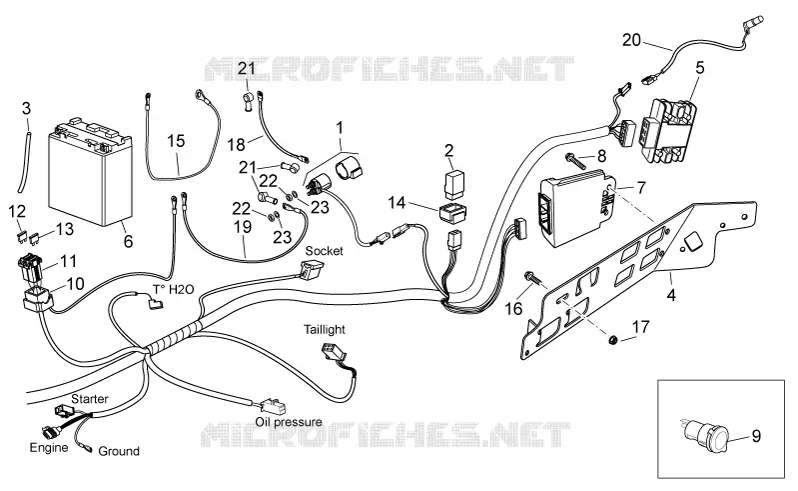

Find the detailed Rear electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
