Engine displacement
125
2
Model
ATLANTIC
3
Year
2010
4
Trim
Atlantic E3
5
Parts Catalog
RH controls
6
Parts Diagram
Parts Catalog
Dashboard
by
Engine
RH controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
1
Front master cilinder
AP8133734
Not Available
2
Pump cover
AP8133808
Not Available
3
Vis couvercle pompe
AP8133807
$3,65 Unit Price incl. VAT
4
Écrou
AP8213585
$3,65 Unit Price incl. VAT
5
Pivot levier frein
AP8213584
$3,65 Unit Price incl. VAT
6
Levier frein
AP8133811
$27,67 Unit Price incl. VAT
7
Kit révision pompe
AP8133812
$36,89 Unit Price incl. VAT
8
Couple manettes
AP8118656
$22,55 Unit Price incl. VAT
9
Log.commandes él.D noir;
AP8158897
$8,16 Unit Price incl. VAT
10
Coque sup.D;
AP8158932
$8,16 Unit Price incl. VAT
11
Lower shell
AP8158930
Not Available
12
INTERRUP stop ex 126899 580723 294619
580953
$6,23 Unit Price incl. VAT
13
Vis tuyau huile
AP8113003
$3,65 Unit Price incl. VAT
14
Rondelle
AP8113004
$0,34 Unit Price incl. VAT
15
Front brake hose
858232
Not Available
16
RH lights selector cable
AP8127393
Not Available
17
Throttle cable
AP8114449
Not Available
18
Bouton démarrage
AP8124208
$11,69 Unit Price incl. VAT
19
Engine stop-start device
AP8224447
Not Available
20
Bouchon
AP8104546
$5,38 Unit Price incl. VAT
21
Siège comm. gaz;
AP8118582
$19,04 Unit Price incl. VAT
22
Vis
AP8152270
$3,70 Unit Price incl. VAT
23
Vis
AP8152268
$3,38 Unit Price incl. VAT

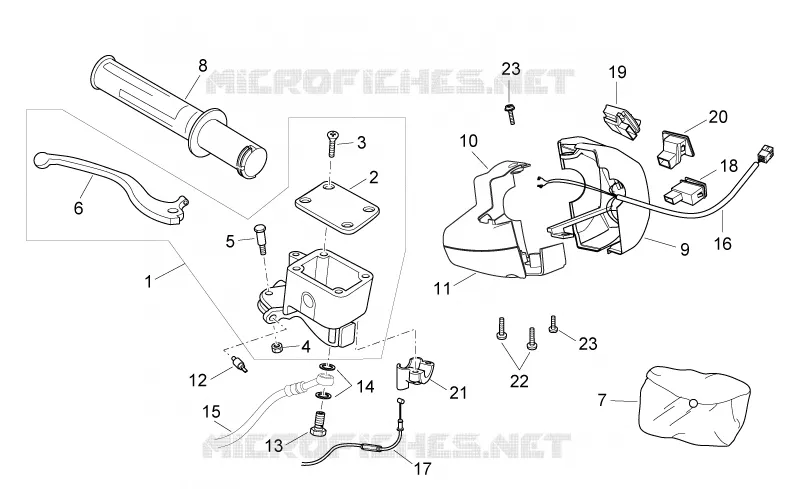

Find the detailed RH controls APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
