Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Undersaddle
by
Drive shaft
Front wheel
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Front wheel Silver
AP8128106
Not Available
1
Front wheel Silver
AP8108991
Not Available
2
Roulement;
AP8225123
$21,37 Unit Price incl. VAT
3
Entretoise interne roue;
AP8133605
$10,95 Unit Price incl. VAT
3
Wheel internal spacer
AP8128105
Not Available
4
Bague d'étanchéité
AP8125782
$18,12 Unit Price incl. VAT
5
Disque frein avant;
AP8133606
$35,10 Unit Price incl. VAT
6
Axe de roue AV
856111
$18,75 Unit Price incl. VAT
7
Entretoise roue avant
AP8121588
$8,01 Unit Price incl. VAT
8
Washer
AP8225206
Not Available
9
Vis;
AP8133607
$3,65 Unit Price incl. VAT
9
Vis
AP8152137
$0,23 Unit Price incl. VAT
10
Tubeless tyre valve
AP8202168
$5,38 Unit Price incl. VAT
10
Soupape tubeless;
AP8201546
$5,38 Unit Price incl. VAT
11
Odometer gear
AP8104402
Not Available
12
Tyre 110/90-13"
AP8109291
Not Available
13
Odometer cable
AP8114460
Not Available
14
Collier, noir
AP8120422
$3,70 Unit Price incl. VAT

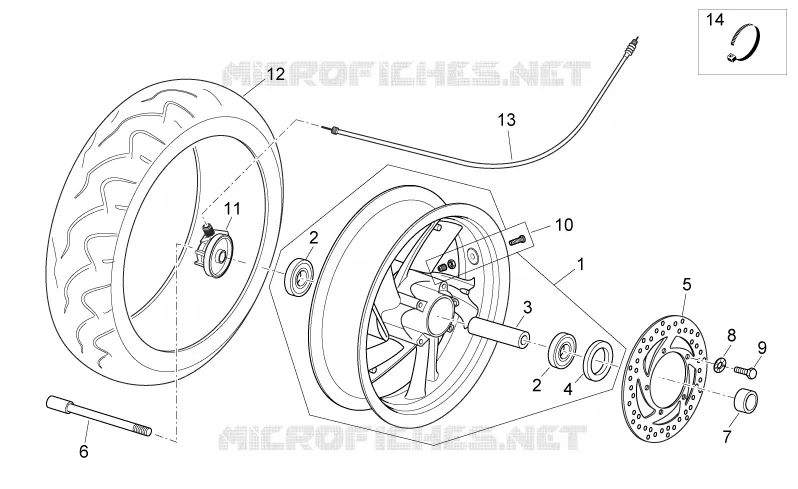

Find the detailed Front wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
