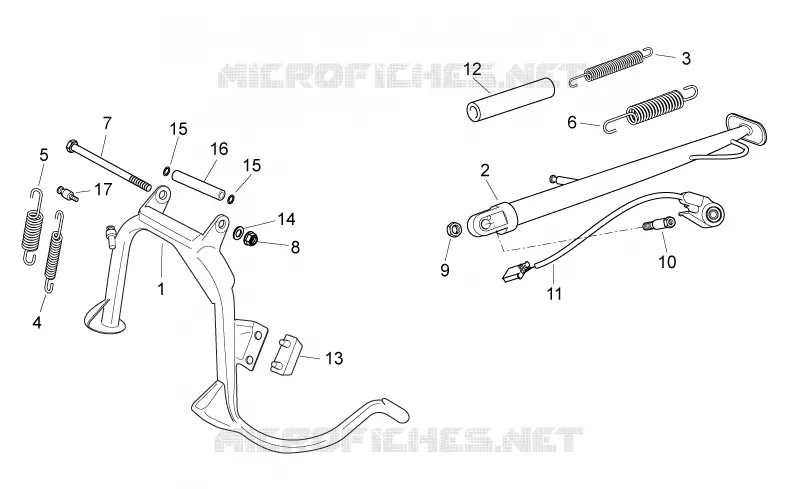

Central stand FOR Atlantic FROM 2011

Central stand

1

Central stand

AP8146659

$78,24 Unit Price incl. VAT

2

Lateral stand

AP8146643

Not Available

3

Internal lateral stand spring

AP8221211

$4,86 Unit Price incl. VAT

4

Internal lateral stand spring

582850

$4,89 Unit Price incl. VAT

5

Lateral stand spring

582851

$4,89 Unit Price incl. VAT

6

Lateral stand spring

AP8221204

$5,45 Unit Price incl. VAT

7

Hex socket screw M10x130

AP8150438

$3,65 Unit Price incl. VAT

8

Self-locking nut

AP8152301

$0,59 Unit Price incl. VAT

9

Low nut M10x1,25

AP8152001

$0,51 Unit Price incl. VAT

10

Central stand fixing screw

AP8121994

$6,60 Unit Price incl. VAT

11

Rotary switch

854888

Not Available

12

Central stand spring prot.

AP8120855

$5,38 Unit Price incl. VAT

13

Stand end stop

AP8144729

$5,38 Unit Price incl. VAT

14

Washer 10,5x21x2*

AP8150020

$0,08 Unit Price incl. VAT

15

O-ring

273754

$0,16 Unit Price incl. VAT

16

Spacer

582298

$3,27 Unit Price incl. VAT

17

Springs fixing pin

483785

$5,45 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
