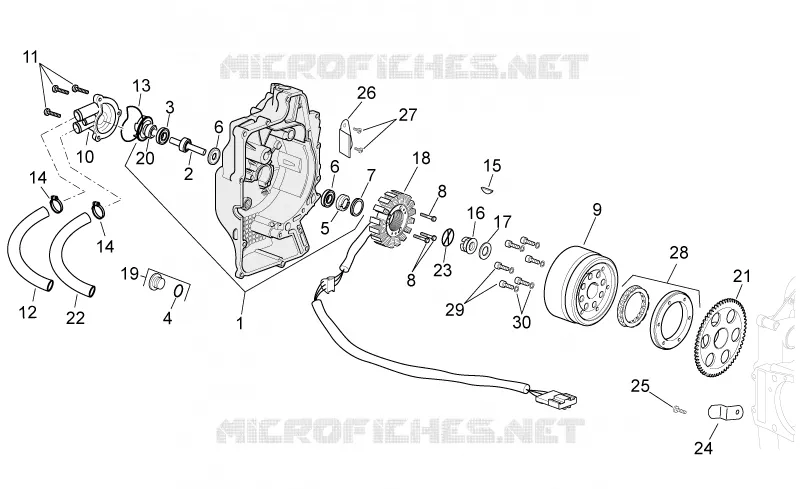

Ignition unit FOR Atlantic FROM 2011

Ignition unit

1

Flywheel cover cpl.

8483785

Not Available

2

Water pump shaft assy.

8447595

$54,95 Unit Price incl. VAT

3

Gasket ring

842595

Not Available

4

O-ring

479986

Not Available

5

Pump impeller drive key

842389

$5,64 Unit Price incl. VAT

6

Bearing 28x8x9

82755R

$14,18 Unit Price incl. VAT

7

Gasket ring 20x30x5

82897R

$4,36 Unit Price incl. VAT

8

screw

597564

$0,50 Unit Price incl. VAT

9

Complete rotor (Kokusan)

873034

$49,85 Unit Price incl. VAT

10

Water pump cover

877528

$14,43 Unit Price incl. VAT

11

Screw M5x22

828662

$0,25 Unit Price incl. VAT

12

Pump-cylinder hose

878626

$5,38 Unit Price incl. VAT

13

O-ring

485080

$0,72 Unit Price incl. VAT

14

Hose clamp

CM001904

$0,75 Unit Price incl. VAT

15

Transmission key

000097

$5,21 Unit Price incl. VAT

16

Special nut

82952R

$5,90 Unit Price incl. VAT

17

Plain washer

842385

$0,68 Unit Price incl. VAT

18

Stator

58224R

Not Available

19

Timing plug assembly

8290405

$10,28 Unit Price incl. VAT

20

Water pump impeller cpl.

844730

$3,01 Unit Price incl. VAT

21

Starter motor gear

82737R

$81,00 Unit Price incl. VAT

22

By-pass pipe

878940

$5,38 Unit Price incl. VAT

23

Drive key

842390

$0,48 Unit Price incl. VAT

24

Ring container lamination

848724

$0,58 Unit Price incl. VAT

25

screw M6x14

008375

$1,55 Unit Price incl. VAT

26

plate

841659

Not Available

27

Screw M5x10

018575

$2,95 Unit Price incl. VAT

28

Complete freewheel

8494905

$51,70 Unit Price incl. VAT

29

Hex socket screw M6x24

877289

$0,34 Unit Price incl. VAT

30

Break washer

479515

$0,08 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
