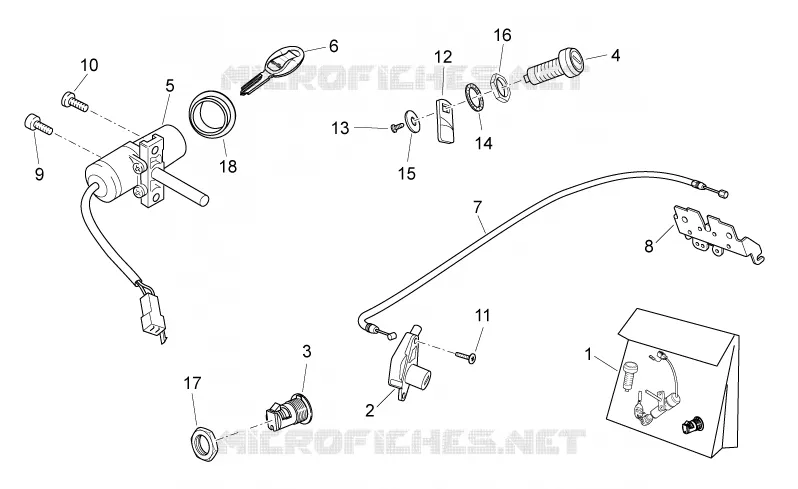

Lock hardware kit FOR Atlantic FROM 2011

Lock hardware kit

1

Lock kit

AP8104418

$40,50 Unit Price incl. VAT

2

Saddle lock

AP8104611

$31,21 Unit Price incl. VAT

3

Front box lock

AP8104612

$25,38 Unit Price incl. VAT

4

Tank door lock

AP8104609

$25,82 Unit Price incl. VAT

5

Main switch - steering lock

AP8104610

$182,14 Unit Price incl. VAT

6

"Aprilia" key w/out transpo.

AP8104613

$8,91 Unit Price incl. VAT

7

Lock cable

AP8104422

$14,30 Unit Price incl. VAT

8

Saddle closing plate

AP8102947

$15,98 Unit Price incl. VAT

9

Hex socket screw M6x16

AP8150137

$3,70 Unit Price incl. VAT

10

Shear rivet M6x17

AP8152140

$3,65 Unit Price incl. VAT

11

Screw w/ flange M6x16

AP8152246

$0,27 Unit Price incl. VAT

12

Lever

AP8201620

$5,38 Unit Price incl. VAT

13

Screw M4x6

AP8201749

$0,16 Unit Price incl. VAT

14

Notched washer

AP8221312

$0,34 Unit Price incl. VAT

15

Washer

AP8201748

$0,14 Unit Price incl. VAT

16

Low nut M19x1*

AP8152194

$1,10 Unit Price incl. VAT

17

Lock nut M22x1,5

AP8102523

$8,01 Unit Price incl. VAT

18

Main switch seal

AP8127461

$1,29 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
