1
Engine displacement
125
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Ignition unit
by
Controls
Crankcase
1
2
3
4
5
6
6
6
7
7
8
9
10
11
12
13
13
13
13
1
Crankcase assy
AP0295931
Not Available
2
Bearing half-shell 32x36x18
AP0233710
Not Available
3
Bearing half-shell 32x36x18
AP0233712
Not Available
4
Bearing half-shell 32x36x18
AP0233715
Not Available
5
Bearing half-shell 32x36x18
AP0233717
Not Available
6
Pin M8x12
AP0632010
Not Available
7
Pin 5x10
AP0929650
Not Available
8
Pin M6x50
AP0229301
Not Available
9
pipe
AP0224260
Not Available
9
pipe
AP0224265
Not Available
10
Hex socket screw
AP0440193
Not Available
11
Gasket ring 8x13
AP0950141
Not Available
12
Oil seal 25x52x7
AP0831177
Not Available
13
Vis sans tête
AP0640240
$9,50 Unit Price incl. VAT

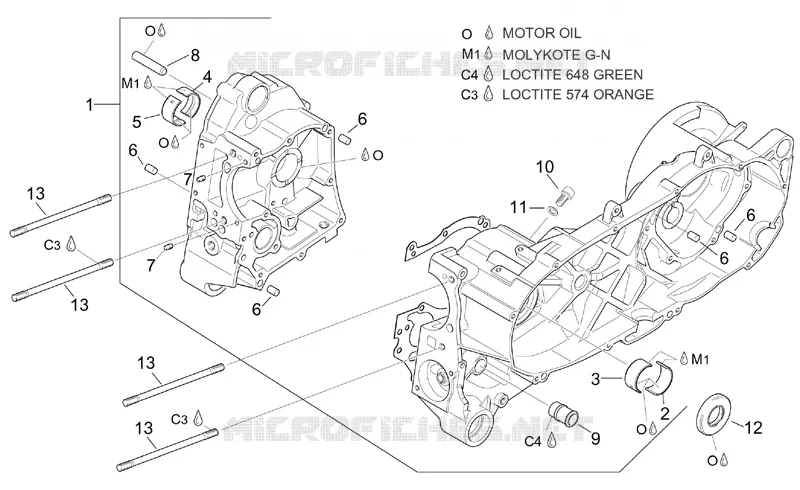

Find the detailed Crankcase APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
