1
Engine displacement
125
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Controls
by
Cylinder
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
1
Tyre
0000000
Not Available
2
Soupape tubeless;
AP8201546
$5,38 Unit Price incl. VAT
3
Rear wheel
AP8108917
Not Available
3
Rear wheel
AP8108706
Not Available
4
Disque frein
AP8213231
$20,52 Unit Price incl. VAT
5
Vis bride
AP8152288
$1,70 Unit Price incl. VAT
6
Entretoise roue arrière
AP8125726
$18,12 Unit Price incl. VAT
7
Brake hanger plate cpl.
AP8134308
Not Available
8
Écrou DAX brid.
AP8152244
$4,36 Unit Price incl. VAT
9
Rondelle élastique
AP8150471
$3,70 Unit Price incl. VAT
10
Vis bride
AP8152287
$0,34 Unit Price incl. VAT
11
Ball bearing
AP8110083
Not Available
12
Silent-block
AP8120970
Not Available
13
Pince frein AR
AP8113848
$681,00 Unit Price incl. VAT
14
Rear pads pair
AP8213462
Not Available
15
Platine antisiff. AV-couple
AP8113677
$8,91 Unit Price incl. VAT
16
Pin+Brake spring
AP8213461
$9,18 Unit Price incl. VAT
17
Brake caliper cover
AP8213224
$5,38 Unit Price incl. VAT
18
Purge+capuchon
AP8113321
$16,91 Unit Price incl. VAT
19
Rondelle
AP8113004
$0,34 Unit Price incl. VAT
20
Vis tuyau huile
AP8113003
$3,65 Unit Price incl. VAT
21
Tuyau frein arrière
AP8113704
$98,82 Unit Price incl. VAT
22
Guide-câble
AP8121856
$3,65 Unit Price incl. VAT
23
Brake caliper rev. kit
AP8213457
Not Available

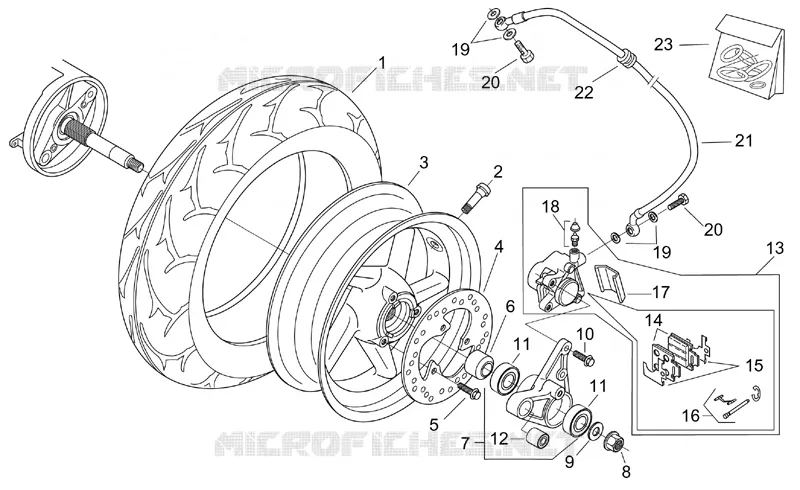

Find the detailed Rear wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
