1
Engine displacement
125
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo
5
Parts Catalog
Central semi-crankcase
6
Parts Diagram
Parts Catalog
Dashboard
by
Central semi-crankcase
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
17
18
19
20
21
22
23
1
Bearing 6003-2RS
AP0232621
Not Available
2
Bearing 6302
AP0232291
Not Available
3
Ball bearing
AP0932425
Not Available
4
Oil seal 30x52x7
AP0930900
Not Available
5
Sleeve crankcase
AP0260295
Not Available
6
Bouchon
AP0241660
$9,50 Unit Price incl. VAT
7
O-ring 14x3,2
AP0650350
Not Available
8
Cover M12x1,5
AP0841921
Not Available
9
Gasket ring 12x18
AP0250640
Not Available
10
Oil filter
AP0256450
$28,35 Unit Price incl. VAT
11
Oil filter cover
AP0211500
Not Available
12
O-ring
AP0430920
Not Available
13
Vis
AP0840880
$3,65 Unit Price incl. VAT
14
Joint
AP0650182
$23,36 Unit Price incl. VAT
15
Hex socket screw M6x80
AP0241501
Not Available
16
Oil press valve body
AP0256482
Not Available
17
Gasket ring 6x10
AP0230415
Not Available
18
Vis
AP0840880
$3,65 Unit Price incl. VAT
19
Gasket ring 16x22
AP0430622
Not Available
20
Cover m16x1,5
AP0240230
Not Available
21
Hex socket screw M6x60
AP0240371
Not Available
22
Bille
AP0432680
$3,65 Unit Price incl. VAT
23
Compression spring 13,5
AP0239280
Not Available

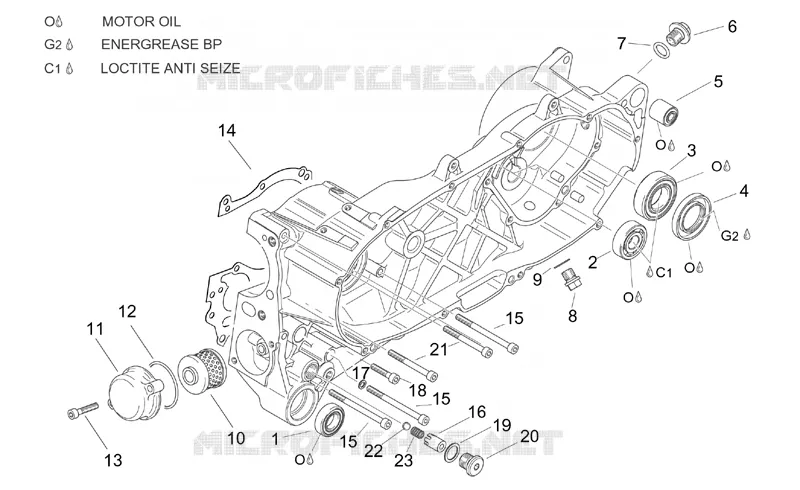

Find the detailed Central semi-crankcase APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
