Engine displacement
500
2
Model
ATLANTIC
3
Year
2005
4
Trim
Atlantic Sprint
5
Parts Catalog
Rear shock absorber
6
Parts Diagram
Parts Catalog
Valve control
by
Rear wheel
Rear shock absorber
1
1
2
2
3
3
3
3
4
4
5
5
6
6
7
8
9
9
1
Shock absorber
AP8163472
Not Available
2
Ecrou autobloqu.
AP8152301
$0,59 Unit Price incl. VAT
3
Ecrou autobloqu.
AP8152300
$0,34 Unit Price incl. VAT
4
Vis bride
AP8152292
$3,65 Unit Price incl. VAT
5
Vis
AP8150048
$0,59 Unit Price incl. VAT
6
Rondelle
AP8150020
$0,08 Unit Price incl. VAT
7
Bracket
AP8146947
Not Available
8
Bracket
AP8146946
Not Available
9
Vis
AP8150329
$3,65 Unit Price incl. VAT

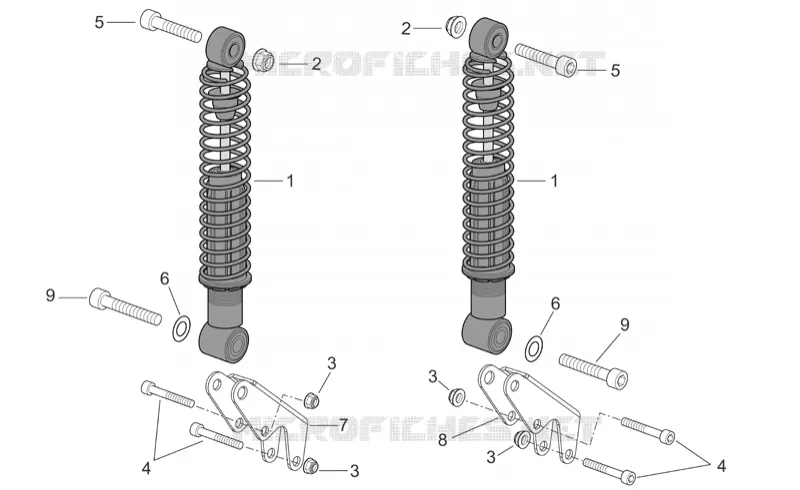

Find the detailed Rear shock absorber APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
