Engine displacement
500
2
Model
ATLANTIC
3
Year
2005
4
Trim
Atlantic Sprint
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Rear shock absorber
by
Electrical system I
Rear wheel
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
1
Rear wheel Silver
852265
Not Available
1
Rear wheel Silver
AP8108960
Not Available
2
Rear brake disc
AP8113800
Not Available
3
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
4
Tubeless tyre valve
AP8202168
$5,38 Unit Price incl. VAT
5
Pare-poussière
AP8110086
$5,38 Unit Price incl. VAT
6
Vis
AP8150277
$0,42 Unit Price incl. VAT
6
Nut M10x1,25
AP8150552
$5,38 Unit Price incl. VAT
7
Tyre 140/60-14"
AP8109312
Not Available
8
Silencer supp. plate
AP8146943
Not Available
8
Silencer supp. plate
AP8154067
Not Available
9
Rear wheel spacer
AP8125845
Not Available
10
Rear wheel spacer
AP8125862
Not Available
11
Rear wheel nut
AP8550307
Not Available
12
Bearing 6303-2RS1
AP8152402
Not Available
13
Bague
AP8152401
$3,65 Unit Price incl. VAT
14
Rondelle
AP8150017
$3,65 Unit Price incl. VAT
14
Rondelle
AP8150018
$0,34 Unit Price incl. VAT
15
Prot. anti-poussière;
AP8149465
$5,38 Unit Price incl. VAT
16
Split pin
AP8121620
Not Available
17
Cap
AP8550261
$5,38 Unit Price incl. VAT

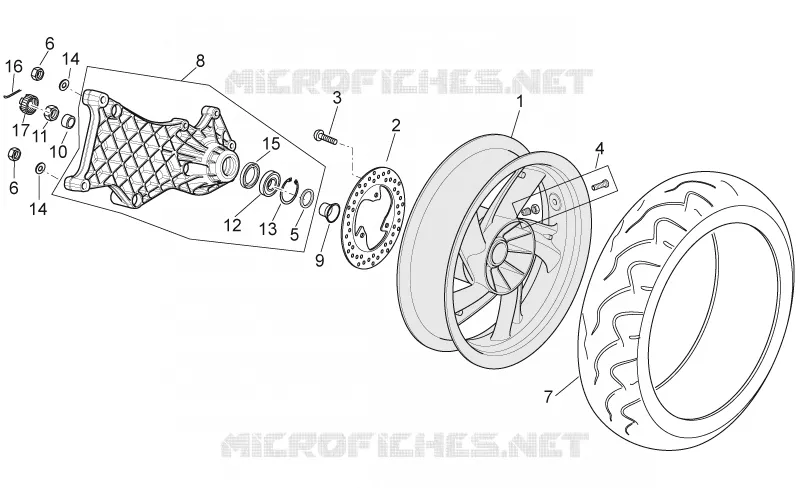

Find the detailed Rear wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
