Engine displacement
250
2
Model
LEONARDO
3
Year
2003
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Carburettor cpl.
6
Parts Diagram
Parts Catalog
Lock hardware kit
by
Carburettor I
Carburettor cpl.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
20
21
1
Carburettor cpl.
AP8176039
Not Available
1
Carburettor cpl.
AP8176085
Not Available
1
Carburettor cpl.
AP8106982
Not Available
2
Automatic starter cpl.
AP8106993
Not Available
3
plate
AP8176006
Not Available
3
plate
AP8122578
Not Available
4
screw
AP8122598
Not Available
4
screw
AP8176018
Not Available
5
O-ring
AP8122543
Not Available
5
O-ring
AP8176007
Not Available
6
Intake manifold
AP8552001
Not Available
7
Carburettor flange
AP8163215
Not Available
8
Joint torique
AP8163214
$11,50 Unit Price incl. VAT
9
Flanged nut
AP8552002
Not Available
10
screw
AP8163216
Not Available
11
pipe
AP8176003
Not Available
12
Fuel pipe 5,5x10
AP8120952
Not Available
13
pipe
AP8122567
Not Available
13
pipe
AP8176002
Not Available
14
pipe
AP8176001
Not Available
15
Collier
AP8102401
$3,70 Unit Price incl. VAT
16
Collier
AP8101595
$0,32 Unit Price incl. VAT
17
Automatic starter cpl.
AP8122627
Not Available
18
Fuel pipe 5,5x10
AP8120952
Not Available
18
pipe
AP8144266
Not Available
19
Spring
AP8122450
Not Available
20
pipe
AP8122510
Not Available
21
pipe
AP8122509
Not Available

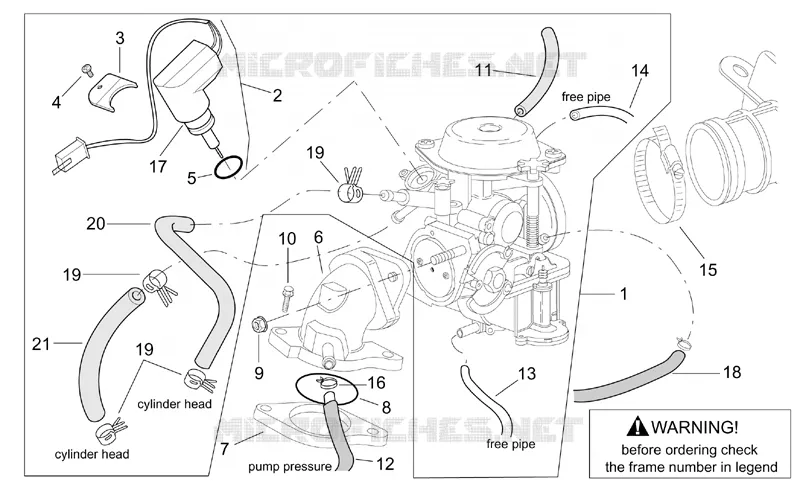

Find the detailed Carburettor cpl. APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
