Engine displacement
250
2
Model
LEONARDO
3
Year
2003
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Water cooler
6
Parts Diagram
Parts Catalog
Handlebar - Controls
by
Fuel level sensor
Water cooler
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
21
22
22
23
1
Water cooler
AP8102865
Not Available
2
Thermo-interrupt. starter;
AP8124515
$14,95 Unit Price incl. VAT
3
Thermal switch
AP8124638
Not Available
4
Guide-câble
AP8221150
$3,65 Unit Price incl. VAT
5
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
6
Vis bride
AP8152273
$0,16 Unit Price incl. VAT
7
Water tubes holder
AP8134460
$5,38 Unit Price incl. VAT
8
Fan upper support
AP8134411
Not Available
9
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
10
Water cooler upper support
AP8134496
Not Available
11
Water cooler lower support
AP8134454
Not Available
12
Front shield support
AP8134494
Not Available
13
Silentbloc
AP8120275
$0,55 Unit Price incl. VAT
14
Vase d'expansion;
AP8138946
$45,45 Unit Price incl. VAT
15
Rad cap w/ vent
AP8201463
Not Available
16
Water cooler gasket
AP8144078
Not Available
17
Water cooler-head tube
AP8144133
Not Available
18
Water cooler-pump tube
AP8144134
Not Available
19
Breather pipe
AP8144056
Not Available
20
TUYAU
AP8220402
$4,62 Unit Price incl. VAT
21
Collier
AP8102732
$3,65 Unit Price incl. VAT
22
Collier
AP8102159
$1,02 Unit Price incl. VAT
23
Fan, cpl.
AP8124446
Not Available

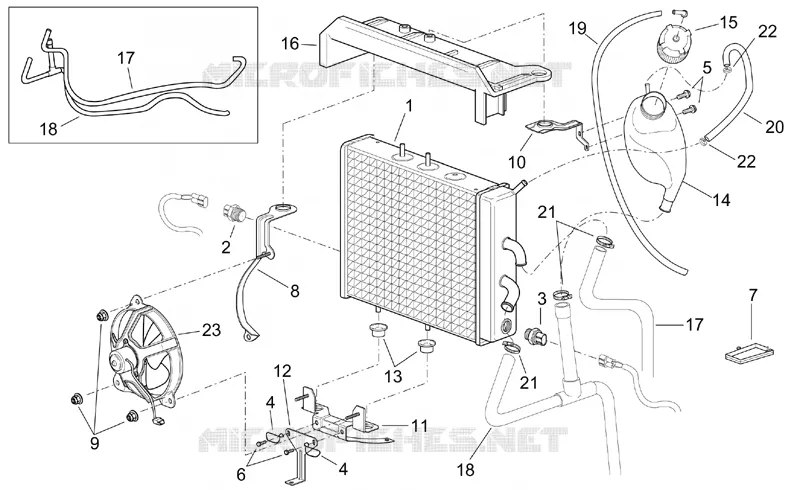

Find the detailed Water cooler APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
