Engine displacement
250
2
Model
LEONARDO
3
Year
2003
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Valves
6
Parts Diagram
Parts Catalog
Drive shaft - Cylinder - Piston
by
Valve control
Valves
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
13
1
Intake valve
AP8552060
Not Available
2
Exhaust valve
AP8552061
Not Available
3
Valve spring retainer
AP8552062
Not Available
4
Valve spring kit
AP8552063
Not Available
5
Nut
AP8552064
Not Available
6
Valve stem seal
AP8552065
Not Available
7
Valve spring retainer
AP8552066
Not Available
8
Valve half-cone
AP8552067
Not Available
9
Rocker arm assy.
AP8552068
Not Available
10
Ex.valve rocker arm rod pin
AP8552069
Not Available
11
Int.valve rocker arm rod pin
AP8552070
Not Available
12
O-ring
AP8552071
Not Available
13
Valve adjuster screw
AP8552072
Not Available

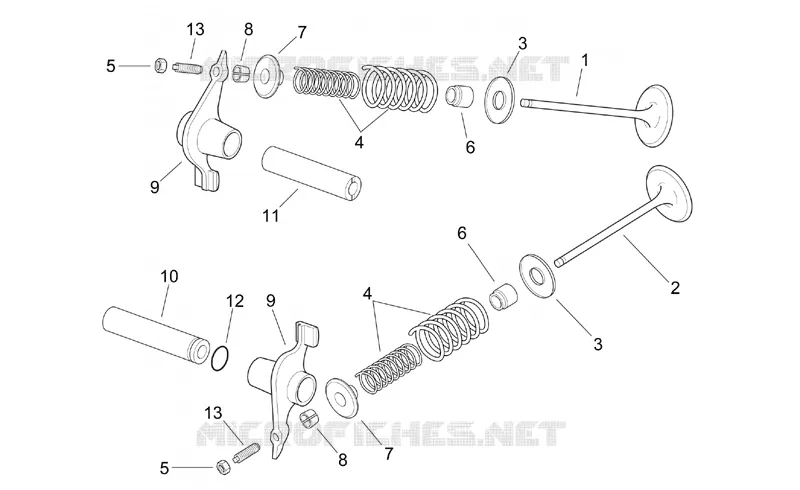

Find the detailed Valves APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
