1
Engine displacement
125
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo ST
5
Parts Catalog

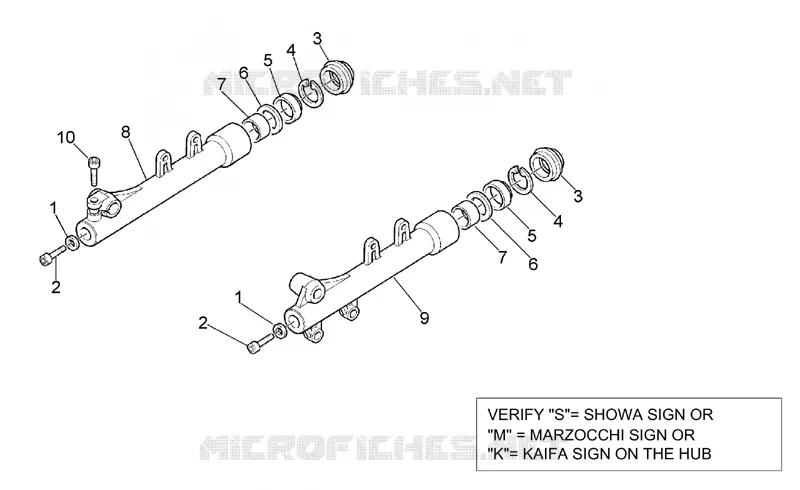

Front fork - Sleeves
6
Parts Diagram
Parts Catalog
Front fork - Sleeves
by
Connecting rod
Front fork - Sleeves
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
10
1
Seal washer
AP8163435
Not Available
1
Seal washer
AP8203572
$3,65 Unit Price incl. VAT
1
Washer
AP8203794
Not Available
2
screw M10x30
AP8163285
$3,65 Unit Price incl. VAT
2
Screw M8x30
AP8123774
Not Available
2
Screw M8x30
AP8203570
Not Available
3
Dust cover
AP8123767
$7,23 Unit Price incl. VAT
3
Dust cover
AP8203258
Not Available
3
Dust cover
AP8163298
$6,38 Unit Price incl. VAT
4
Stop ring
AP8163297
Not Available
4
Stop ring
AP8123768
Not Available
4
Stop ring
AP8123704
Not Available
5
Oil seal
AP8123769
$8,65 Unit Price incl. VAT
5
Oil seal
AP8163296
$5,53 Unit Price incl. VAT
5
Oil seal
AP8103199
$8,17 Unit Price incl. VAT
6
Cup
AP8123705
Not Available
6
Cup
AP8123770
Not Available
6
Oil seal washer
AP8163295
$3,65 Unit Price incl. VAT
7
Bush
AP8123771
Not Available
7
Bush
AP8203447
Not Available
7
Bush
AP8163294
Not Available
8
RH sleeve
AP8163486
Not Available
8
RH sleeve
AP8123772
Not Available
8
RH sleeve
AP8123706
Not Available
9
LH sleeve
AP8123707
Not Available
9
LH sleeve
AP8163485
Not Available
9
LH sleeve
AP8123773
Not Available
10
screw
AP8203571
Not Available
10
Hex socket screw M6x20
AP8223054
$3,65 Unit Price incl. VAT
10
screw M6x20
AP8203796
$5,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
