1
Engine displacement
125
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo ST
5
Parts Catalog

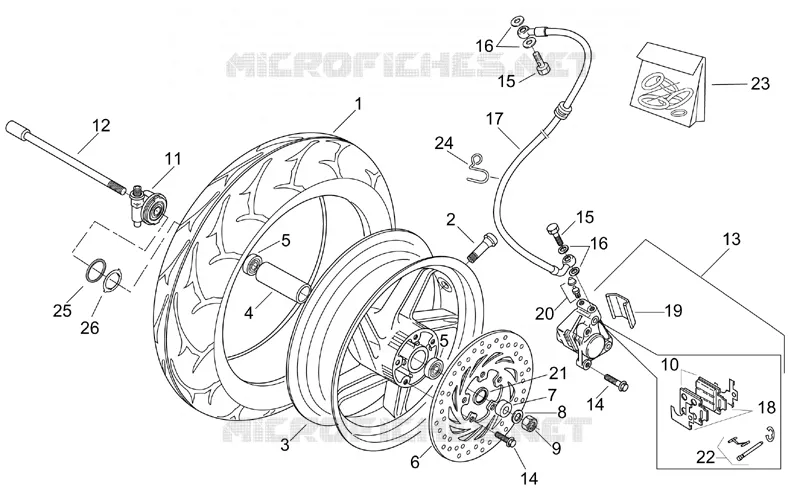

Front wheel
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Rear wheel
Front wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
1
Tyre
0000000
Not Available
2
Tubeless tyre valve
AP8201546
$5,38 Unit Price incl. VAT
3
Front wheel, gold
AP8128027
Not Available
3
Front wheel
AP8108918
Not Available
4
Internal spacer
AP8125752
Not Available
5
Bearing
AP8225148
$14,30 Unit Price incl. VAT
6
Brake disc D220
AP8113541
Not Available
7
Front wheel spacer
AP8221119
$3,65 Unit Price incl. VAT
8
Washer 12,2x22x2
AP8152018
$3,65 Unit Price incl. VAT
9
Low self-locking nut M12x1,25
AP8150373
$3,65 Unit Price incl. VAT
10
Pads pair
AP8213460
$39,15 Unit Price incl. VAT
11
Odometer gear
AP8102407
$15,61 Unit Price incl. VAT
12
Front wheel spindle
AP8225271
$19,68 Unit Price incl. VAT
13
Front brake caliper D32
AP8113847
Not Available
14
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
15
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
16
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
17
Front brake hose
AP8113703
$51,03 Unit Price incl. VAT
18
F.antiwhistle plate-pair
AP8113677
$8,91 Unit Price incl. VAT
19
Brake caliper cover
AP8113640
$7,02 Unit Price incl. VAT
20
Bleeder+cap
AP8213458
Not Available
21
Gasket ring
AP8125782
$18,12 Unit Price incl. VAT
22
Pin+Brake spring
AP8213459
Not Available
23
Brake caliper rev. kit
AP8113122
$27,67 Unit Price incl. VAT
24
Cable-guide
AP8144055
Not Available
25
Gasket ring D40x50x4
AP8125743
$15,31 Unit Price incl. VAT
26
Drive key
AP8120865
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
