1
Engine displacement
125
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo ST
5
Parts Catalog
Saddle unit
6

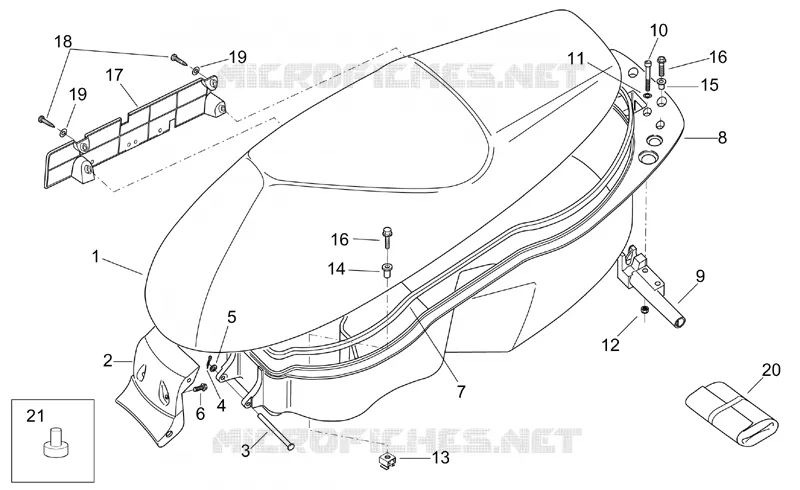

Parts Diagram
Parts Catalog
Central body - Tunnel
by
Rear body - Rear fairing
Saddle unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
19
20
21
1
Saddle, grey
AP8129325
Not Available
1
Saddle, grey/black
AP8129433
Not Available
1
Saddle
AP8129378
Not Available
1
Saddle
AP8129379
Not Available
1
Saddle, grey/grey
AP8129432
Not Available
1
Saddle
AP8129386
Not Available
2
Pillar hinge, blue
AP8178296
Not Available
2
Pillar hinge, grey
AP8158551
Not Available
2
Pillar hinge, blue
AP8178307
Not Available
2
Pillar hinge, grey
AP8168659
Not Available
2
Pillar hinge, red
AP8168677
Not Available
2
Pillar hinge, black
AP8149997
Not Available
2
Pillar hinge, red
AP8158700
Not Available
2
Pillar hinge, blue
AP8158518
Not Available
3
Saddle spin
AP8221173
Not Available
4
Split pin
AP8201643
$5,38 Unit Price incl. VAT
5
Washer 6,4x12,5*
AP8150014
$3,70 Unit Price incl. VAT
6
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
7
Gasket
AP8144186
Not Available
8
Helmet compartment, black
AP8138928
Not Available
9
Saddle lock
AP8201564
$42,72 Unit Price incl. VAT
10
Hex socket screw M6x55
AP8150045
$0,34 Unit Price incl. VAT
11
Washer 6,4x12,5*
AP8150014
$3,70 Unit Price incl. VAT
12
Low self-locking nut
AP8150430
$0,16 Unit Price incl. VAT
13
Captive nut M6
AP8221213
$3,65 Unit Price incl. VAT
14
Dashboard bush
AP8121741
$3,65 Unit Price incl. VAT
15
T bush *
AP8121790
$3,38 Unit Price incl. VAT
16
Screw w/ flange M6x30
AP8152281
$1,70 Unit Price incl. VAT
17
Blk. elec. comp sup.
AP8138473
Not Available
18
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
19
Washer 15x5,5X1,2
AP8150382
$0,16 Unit Price incl. VAT
20
Toolkit
AP8102872
Not Available
21
Front saddle support rubber
AP8144089
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
