Parts Catalog
Rear body I
6
Parts Diagram
Parts Catalog
Clutch cover
by
ABS brake system
Rear body I
26
25
24
23
22
21
20
19
18
17
16
15
14
14
13
12
12
11
10
9
8
7
6
6
5
5
4
4
4
4
3
2
1
1
Pivot fixation
893259
$1,41 Unit Price incl. VAT
2
Vis
AP8152043
$0,15 Unit Price incl. VAT
3
Vis
AP8121184
$3,70 Unit Price incl. VAT
4
Screw w/ flange M5x12
AP8152302
Not Available
5
VITE TBEI M5 X 10
AP8150538
$4,32 Unit Price incl. VAT
6
Clip
AP8102375
$0,69 Unit Price incl. VAT
7
Clip
AP8102381
$1,09 Unit Price incl. VAT
8
Rondelle nylon
AP8144565
$3,65 Unit Price incl. VAT
9
Vis taraud pour plast. Inox
AP8150421
$3,70 Unit Price incl. VAT
10
Queue G.
2H002241000XN2
$375,63 Unit Price incl. VAT
11
Queue Drt.
2H002240000XN2
$375,63 Unit Price incl. VAT
12
Rondelle
AP8120592
$0,16 Unit Price incl. VAT
13
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
14
Rondelle pour arbres
AP8150450
$0,25 Unit Price incl. VAT
15
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
16
Caoutchouc
AP8220238
$4,62 Unit Price incl. VAT
17
Base couvre-selle
858838
$2,96 Unit Price incl. VAT
18
Rondelle
AP8150158
$3,65 Unit Price incl. VAT
19
COUSSIN
893112
$25,42 Unit Price incl. VAT
20
Grille droite
893108
$0,53 Unit Price incl. VAT
21
Grille gauche
893109
$20,99 Unit Price incl. VAT
22
Couvre-selle
2H001595000XN2
$79,10 Unit Price incl. VAT
23
FLANC G.
2B003815
$41,80 Unit Price incl. VAT
24
Aile Drt.
2B003816
$41,80 Unit Price incl. VAT
25
Vis
896174
$0,34 Unit Price incl. VAT
26
Collier
AP8120657
$0,34 Unit Price incl. VAT

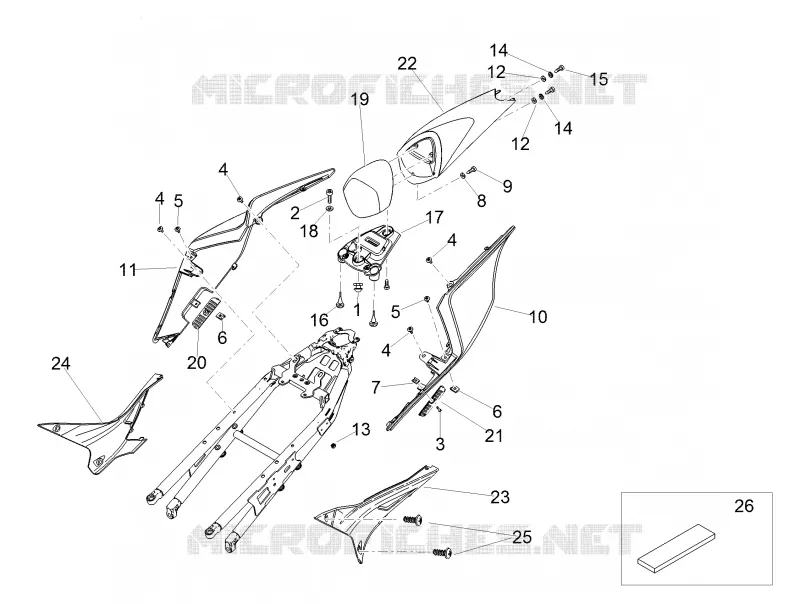

Find the detailed Rear body I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
