Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RF E4 ABS
5
Parts Catalog
Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Lock hardware kit
by
Foot rests
Fuel vapour recover system
26
25
24
23
22
21
20
20
19
18
17
16
15
15
15
15
15
14
14
13
12
11
10
9
8
8
7
6
6
5
4
3
2
1
1
Canister
2B002632
$30,77 Unit Price incl. VAT
2
Collier serr. Tube
AP8102520
$0,26 Unit Price incl. VAT
3
Tuyau essence D.8X13
890499
$4,46 Unit Price incl. VAT
4
TUYAU
856063
$41,29 Unit Price incl. VAT
5
Guide-câble
AP8221150
$3,65 Unit Price incl. VAT
6
Collier clic
AP8102239
$0,84 Unit Price incl. VAT
7
Soupape pression
AP8104614
$75,62 Unit Price incl. VAT
8
Collier clic
AP8120446
$0,75 Unit Price incl. VAT
9
Queue de étranglement
AP8121267
$11,69 Unit Price incl. VAT
10
Collier serr. Tube
AP8102998
$3,65 Unit Price incl. VAT
11
Tuyau SAE 30 R12A-3/16"
2B003692
$25,10 Unit Price incl. VAT
12
Collier clic
AP8102764
$1,86 Unit Price incl. VAT
13
Passe-câble
AP8221311
$5,38 Unit Price incl. VAT
14
Vis
AP8150044
$3,65 Unit Price incl. VAT
15
Collier
CM001901
$0,76 Unit Price incl. VAT
16
Entretoise
894933
$12,15 Unit Price incl. VAT
17
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
18
Raccord 3 voies
AP8104666
$4,98 Unit Price incl. VAT
19
Rondelle spéciale
AP8150536
$10,76 Unit Price incl. VAT
20
Collier
AP8141017
$0,28 Unit Price incl. VAT
21
Patte
2B003441
$10,76 Unit Price incl. VAT
22
Shed pipe assembly
2B003684
$75,13 Unit Price incl. VAT
23
Joint
2B003714
$3,65 Unit Price incl. VAT
24
Tuyau SAE 30 R12A-3/16"
2B003691
$39,97 Unit Price incl. VAT
25
Pipette de ventilation
AP8127601
$3,70 Unit Price incl. VAT
26
Collier serr. Tube
AP8102520
$0,26 Unit Price incl. VAT

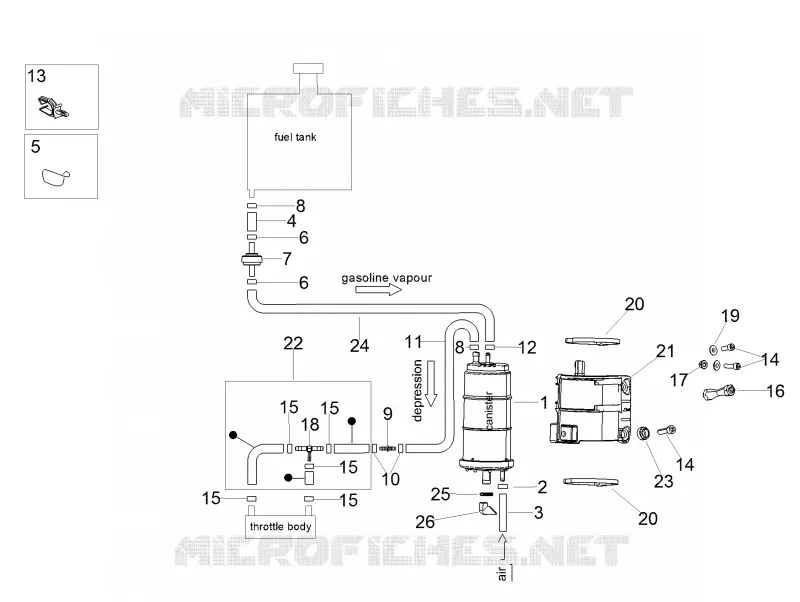

Find the detailed Fuel vapour recover system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
