Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Valves cover
by
Drive shaft
Cooling system
46
45
44
43
42
41
40
39
38
37
36
36
35
34
34
33
32
31
30
29
28
27
27
27
27
26
26
25
24
24
24
23
23
22
22
22
21
21
21
20
20
19
18
17
16
16
15
14
14
13
12
11
10
9
9
8
7
6
6
6
6
5
4
4
4
3
2
1
1
Water cooler
2B003834
Not Available
2
Fan, cpl.
2D000310
Not Available
3
Support radiateur
897775
$6,64 Unit Price incl. VAT
4
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
5
Gr. bouchon cpl.
893954
$33,25 Unit Price incl. VAT
6
COLLIER SERR. TUBE
CM269609
$5,20 Unit Price incl. VAT
7
Eponge adhésive
AP8117033
$5,38 Unit Price incl. VAT
8
Tuyau radiateur
2B002204
$42,72 Unit Price incl. VAT
9
"Douille en ""T"" *"
AP8221023
$0,93 Unit Price incl. VAT
10
Groupe thermostat
856279
$112,07 Unit Price incl. VAT
11
Manchon
2B002207
$20,60 Unit Price incl. VAT
12
Tuy.thermos.-pompe
AP8144033
$49,51 Unit Price incl. VAT
13
Vis taraud pour plast. Inox
AP8150444
$0,17 Unit Price incl. VAT
14
Caoutchouc
AP8120030
$0,85 Unit Price incl. VAT
15
Tuyau radiateur
858488
$34,44 Unit Price incl. VAT
16
Collier
CM269603
$3,65 Unit Price incl. VAT
17
Tuy.thermostat-mot.
2B002208
$56,87 Unit Price incl. VAT
18
Vis bride
AP8152272
$0,08 Unit Price incl. VAT
19
Collier
893224
$1,92 Unit Price incl. VAT
20
Vis FHC
893514
$1,59 Unit Price incl. VAT
21
Rondelle
893823
$3,70 Unit Price incl. VAT
22
Entretoise
893513
$0,53 Unit Price incl. VAT
23
Rondelle
AP8150011
$0,25 Unit Price incl. VAT
24
Ecrou autofr. bas
AP8150204
$0,51 Unit Price incl. VAT
25
Temperature gauge
640485
Not Available
26
Tuyau moteur-collec.
2B002203
$45,50 Unit Price incl. VAT
27
Collier clic
AP9100456
$3,65 Unit Price incl. VAT
28
Collecteur
856543
$35,21 Unit Price incl. VAT
29
Fuel pipe 5,5x10
AP8120952
Not Available
30
Bouchon
899642
$11,80 Unit Price incl. VAT
31
Vase d'expansion
2B003557
$49,79 Unit Price incl. VAT
32
"Douille en ""T"" *"
AP8221145
$3,65 Unit Price incl. VAT
33
Rondelle
AP8150158
$3,65 Unit Price incl. VAT
34
"Douille en ""T"""
AP8121728
$6,08 Unit Price incl. VAT
35
Douille;
AP8121991
$5,20 Unit Price incl. VAT
36
Guide-câble
AP8221150
$3,65 Unit Price incl. VAT
37
Douille filetée
895450
$1,49 Unit Price incl. VAT
38
Manchon
AP8144720
$6,30 Unit Price incl. VAT
39
Insert
898047
$1,47 Unit Price incl. VAT
40
Anneau d'arrêt rad.
AP8120573
$3,65 Unit Price incl. VAT
41
Tuyau
899881
$5,09 Unit Price incl. VAT
42
Collier
AP8101595
$0,32 Unit Price incl. VAT
43
Collier serr. Tube
AP8102520
$0,26 Unit Price incl. VAT
44
Collier
AP8101595
$0,32 Unit Price incl. VAT
45
RACCORD
856082
$35,84 Unit Price incl. VAT
46
Caoutchouc champignon;
AP8220488
$4,92 Unit Price incl. VAT

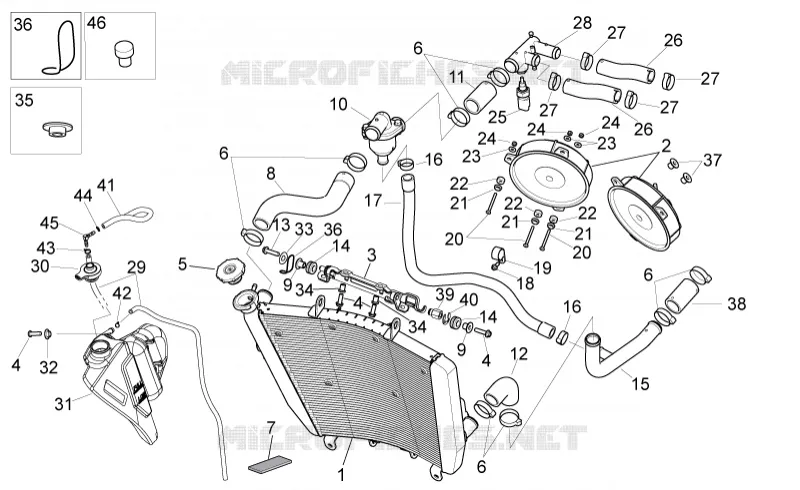

Find the detailed Cooling system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
