1
Engine displacement
150
2
Model
MOJITO
3
Year
2003
4
Trim
Mojito
5
Parts Catalog
Handlebar - Mirrors RETRO'
6
Parts Diagram
Parts Catalog
Headlight support - RETRO'
by
Plate set-decal-op.handbooks

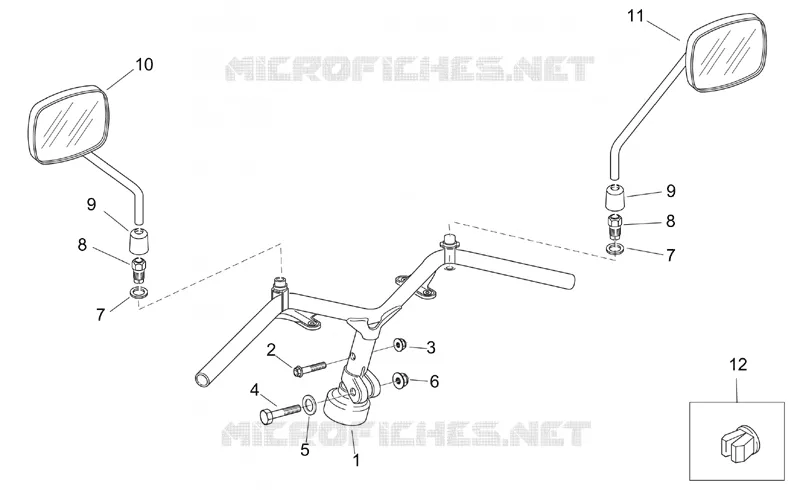

Handlebar - Mirrors RETRO'
1
2
3
4
5
6
7
7
8
8
9
9
10
11
12
1
Handlebar
AP8118564
Not Available
2
Screw w/ flange M8x40
AP8152290
$3,65 Unit Price incl. VAT
3
Self-locking nut M8
AP8152300
$0,34 Unit Price incl. VAT
4
Screw
AP8150323
$3,65 Unit Price incl. VAT
5
Washer 10,5x21x2*
AP8150020
$0,08 Unit Price incl. VAT
6
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
7
Spacer
AP8144310
$1,55 Unit Price incl. VAT
8
Nut with caliper
AP8221256
Not Available
9
Rubber bellows
AP8220462
$5,38 Unit Price incl. VAT
10
LH rearview mirror
AP8104149
Not Available
11
RH rearview mirror
AP8104148
Not Available
12
Plastic rivet
AP8102671
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
