1
Engine displacement
150
2
Model
MOJITO
3
Year
2003
4
Trim
Mojito
5
Parts Catalog
Variator assembly
6
Parts Diagram
Parts Catalog
Acc. - Various
by
Fuel vapour recover system

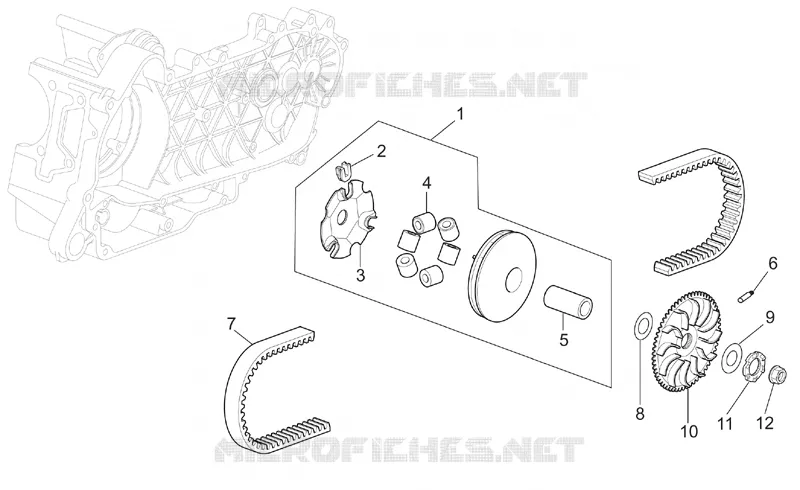

Variator assembly
1
2
3
4
5
6
7
8
9
10
11
12
1
Half-pulley assy., driving
AP8540164
Not Available
1
Half-pulley assy., driving
AP8540095
Not Available
1
Half-pulley assy., driving
AP8540096
Not Available
2
Sliding block
AP8550448
Not Available
3
Ramp plate
AP8577052
Not Available
3
Ramp plate
AP8580088
Not Available
4
Pin roller-set 8,5gr
AP8540094
Not Available
4
Pin roller-set 10 g
AP8540093
Not Available
5
Spacer
AP8580075
Not Available
6
Pin
AP8550285
Not Available
7
V-belt
AP8580247
Not Available
8
Washer 1x32x17
AP8550131
Not Available
9
Washer 0,5x35x17
AP8550133
Not Available
10
Fixed pulley
AP8540165
Not Available
10
Fixed pulley
AP8580085
Not Available
11
Toothed cup
AP8580135
Not Available
12
Nut cpl.
AP8550134
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
