1
Engine displacement
150
2
Model
MOJITO
3
Year
2003
4
Trim
Mojito
5
Parts Catalog
Dashboard
6

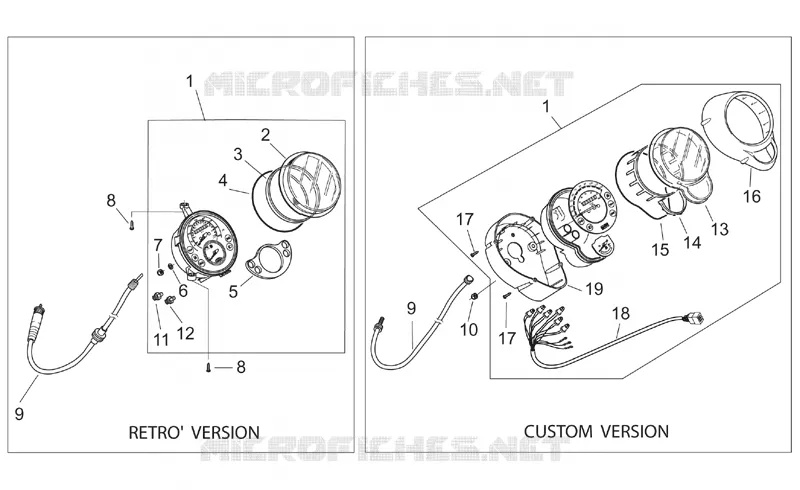

Parts Diagram
Parts Catalog
Front wheel - CUSTOM
by
Rear body - Undersaddle
Dashboard
1
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
17
18
19
1
Dashboard complete
AP8127526
Not Available
1
Dashboard complete
AP8127590
Not Available
1
Dashboard complete
AP8127589
Not Available
1
Dashboard complete
AP8127537
Not Available
1
Dashboard complete
AP8224311
Not Available
2
Dashboard window
AP8224219
Not Available
3
Lighting shield
AP8224218
Not Available
4
O-ring
AP8220551
Not Available
5
Panel, chr.
AP8224217
Not Available
6
Stainless washer
AP8152391
Not Available
7
Nut m3
AP8225360
Not Available
8
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
9
Odometer cable
AP8114473
$15,66 Unit Price incl. VAT
9
Odometer cable
AP8114472
$49,95 Unit Price incl. VAT
10
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
11
Lampholder, complete
AP8224220
Not Available
12
Lampholder, complete
AP8124888
Not Available
13
Dashboard window
AP8224231
$2,39 Unit Price incl. VAT
14
Diffuser shield
AP8224232
$6,15 Unit Price incl. VAT
15
Gasket
AP8220555
Not Available
16
Frame, chrom.
AP8224240
$24,14 Unit Price incl. VAT
17
Self-tap screw 2,2x16
AP8224244
Not Available
18
Wiring with lamps
AP8124921
Not Available
19
Lower shell
AP8249265
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
