1
Engine displacement
150
2
Model
MOJITO
3
Year
2003
4
Trim
Mojito
5
Parts Catalog

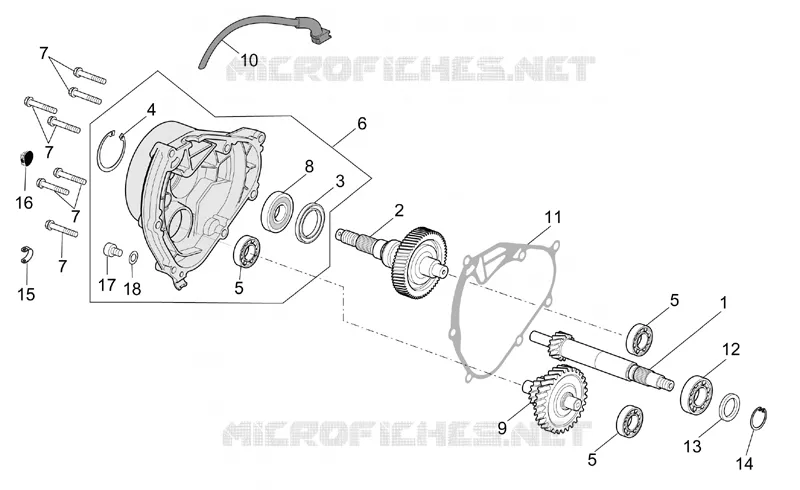

Transmission final drive
6
Parts Diagram
Parts Catalog
Head cover
by
Rear body - Plate holder
Transmission final drive
1
2
3
4
5
5
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
1
Driven pulley shaft
AP8580091
Not Available
2
Rear wheel axis cpl.
AP8540011
Not Available
2
Rear wheel axis cpl.
AP8540018
Not Available
3
Gasket ring
AP8540040
Not Available
4
Snap ring
AP8540001
Not Available
5
Bearing d15x42x13
AP8560019
Not Available
6
Transmission cover cpl.
AP8540089
Not Available
7
screw
AP8570077
Not Available
8
Bearing 25x52x15
AP8540005
Not Available
9
Transmission shaft
AP8580242
Not Available
9
Transmission shaft
AP8540017
Not Available
10
Breather
AP8580189
$14,89 Unit Price incl. VAT
11
Gasket
AP8580103
Not Available
12
Bearing
AP8570030
Not Available
13
Gasket ring
AP8550577
Not Available
14
Snap ring
AP8560007
Not Available
15
Hose clamp
AP8540073
Not Available
16
Cover
AP8540016
Not Available
17
Transm.oil unload screw
AP8550361
Not Available
18
Alloy washer
AP8550304
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
