1
Engine displacement
125
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog

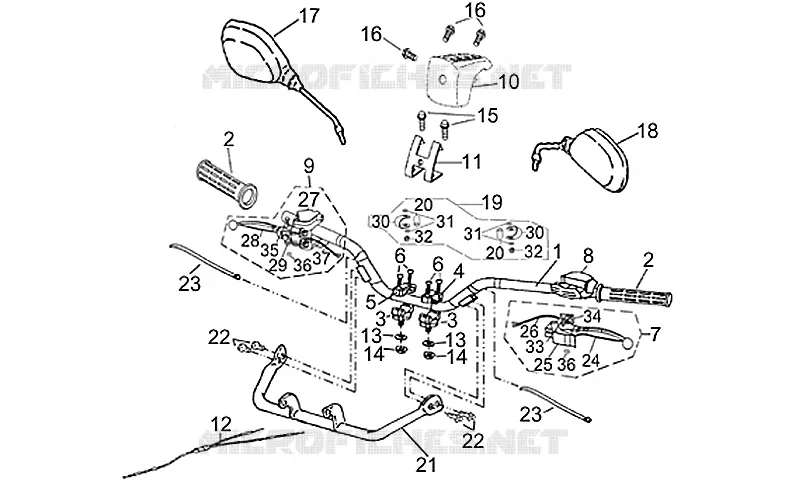

HANDLEBAR
6
Parts Diagram
Parts Catalog
Rear brake
by
Rear axle
HANDLEBAR
36
35
34
33
32
32
31
31
30
30
29
28
27
26
25
24
23
23
22
22
21
20
19
18
17
17
16
16
15
14
14
13
13
12
11
10
9
8
7
6
6
5
4
3
3
2
2
1
36
37
1
Guidon cpl.
AP8910977
Not Available
2
Handgrip - pair
AP8910272
Not Available
3
Lower U-bolt
AP8910280
Not Available
4
U-bolt A
AP8910281
Not Available
5
U-bolt B
AP8910282
Not Available
6
Hex socket screw M6x25
AP8910333
Not Available
7
Levier frein G.cpl.
AP8910982
Not Available
8
Lights selector
AP8910194
Not Available
9
RH brake lever cpl.
AP8910274
Not Available
10
Tableau de bord
AP8910998
Not Available
11
Support
AP8910983
Not Available
11
Support
AP8910984
Not Available
12
Câble gaz
AP8910734
Not Available
13
Plain washer 10x22x2
AP8910387
Not Available
14
Nut
AP8910314
Not Available
15
Screw w/ flange M6x12
AP8910426
Not Available
16
Screw w/ flange
AP8910354
Not Available
17
RH rearview mirror
AP8910513
Not Available
18
LH rearview mirror
AP8910514
Not Available
19
Mirror kit
AP8911204
Not Available
20
Spacer
AP8911205
Not Available
21
Support phare AV
AP8910978
Not Available
22
Screw w/ flange M6x12
AP8910426
Not Available
23
Hose clamp
AP8911021
Not Available
24
LH brake lever
AP8910278
Not Available
25
Plate
AP8910279
Not Available
26
Stop switch
AP8910275
Not Available
27
Throttle
AP8910277
Not Available
28
RH brake lever
AP8910276
Not Available
29
Nipple
AP8910551
Not Available
30
Maintenance
AP8911206
Not Available
31
Plain washer
AP8911211
Not Available
32
Self-locking nut M8
AP8910313
Not Available
33
Hex screw M6x23
AP8910305
Not Available
34
Maintenance
AP8910529
Not Available
35
Hex screw M6x23
AP8910304
Not Available
36
Nut M6
AP8910311
Not Available
37
Rh.Brake light switch
AP8910540
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
