Engine displacement
125
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog
Transmission
6

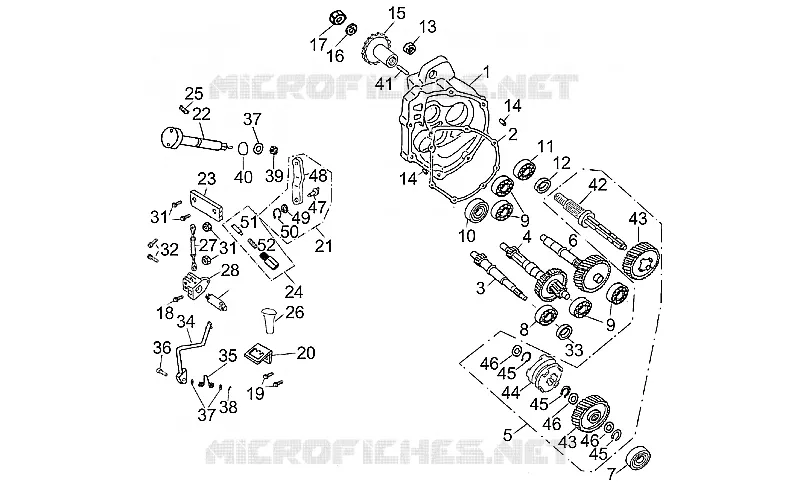

Parts Diagram
Parts Catalog
Speed variator w/ clutch
by
Crankcase
Transmission
50
49
48
47
46
46
46
45
45
45
44
43
43
42
41
40
39
38
37
37
36
35
34
33
32
31
31
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
14
13
12
11
10
9
9
8
7
6
5
4
3
2
1
51
52
1
Couvercle transmission
AP8911184
Not Available
1
Couvercle transmission
AP8911183
Not Available
2
Cover gasket
AP8910769
Not Available
3
Drive shaft
AP8910798
Not Available
4
Double gear
AP8910799
Not Available
5
Reduction
AP8910807
Not Available
6
Intermediate gear
AP8910801
Not Available
7
Bearing CS05 6203
AP8911115
Not Available
8
Bearing C3 6204
AP8911116
Not Available
9
Bearing CS05 6202
AP8911114
Not Available
10
Bearing TMB301
AP8911118
Not Available
11
Roulement 6004LU
AP8911112
Not Available
12
Joint spi
AP8911137
Not Available
13
Silent-block 8x22x23
AP8911127
Not Available
13
Caoutchouc 8x20x23
AP8911126
Not Available
14
Pin 8x14
AP8911071
Not Available
15
Engrenage 17T
AP8910808
Not Available
16
Rondelle plate 16x29x3
AP8911065
Not Available
17
Écrou M16
AP8911017
Not Available
18
Screw w/ flange M6x25
AP8910431
Not Available
19
Vis bride
AP8911085
Not Available
20
Selector
AP8911217
Not Available
21
Gear cpl.
AP8910753
Not Available
22
Gearbox linkage rod
AP8910756
Not Available
23
Plate
AP8910757
Not Available
24
Gearbox selector
AP8910758
Not Available
25
Vis
AP8911022
Not Available
26
Poignée
AP8910765
Not Available
27
Tirant
AP8910759
Not Available
28
Fork
AP8911218
Not Available
29
Pin
AP8910761
Not Available
30
Screw w/ flange M6x12
AP8911083
Not Available
31
Nut M6
AP8910311
Not Available
32
Hex socket screw M6x25
AP8910333
Not Available
33
Oil seal 20x32x6
AP8911135
Not Available
34
Levier boîte de vitesses
AP8911219
Not Available
35
Ressort
AP8910763
Not Available
36
Pin
AP8910764
Not Available
37
Plain washer 8x16x1,5
AP8910385
Not Available
38
Split pin
AP8910404
Not Available
39
Self-locking nut M8
AP8910313
Not Available
40
O-ring 13,8x2,5
AP8910339
Not Available
41
Entretoise
AP8911192
Not Available
42
Arbre sortie
AP8910800
Not Available
43
Engrenage inversion
AP8910802
Not Available
44
Couplement
AP8910830
Not Available
45
Bague de butée
AP8910804
Not Available
46
Rondelle spéciale
AP8910803
Not Available
47
Fixing pin
AP8910754
Not Available
48
Gearbox linkage rod
AP8910755
Not Available
49
Special washer
AP8910805
Not Available
50
Stop ring
AP8910806
Not Available
51
Pin
AP8910767
Not Available
52
Spring
AP8910768
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
