Engine displacement
125
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog
Fr/rear parcel rack-Fr/prot.HP
6
Parts Diagram
Parts Catalog
FRAME
by
Parcel rack- Protection GRIP
Fr/rear parcel rack-Fr/prot.HP
15
10
9
9
8
7
6
5
4
4
4
4
3
3
3
1
2
3
14
14
13
12
11
11
15
1
Tuyau protection
AP8910945
Not Available
2
Protection
AP8910947
Not Available
3
Screw w/ flange
AP8910434
Not Available
4
Spring washer M8
AP8911214
Not Available
5
Self-tap screw
AP8910365
Not Available
6
AR.support p-bagages
AP8911006
Not Available
7
Rear lugg.rack
AP8911005
Not Available
8
Screw w/ flange M6x32
AP8911125
Not Available
9
Nut M6
AP8910311
Not Available
10
Screw w/ flange M6x16
AP8910427
Not Available
11
Screw w/ flange M8x12
AP8910433
Not Available
12
Rear lugg.rack guard
AP8911007
Not Available
13
Plain washer 6x13x1
AP8910382
Not Available
14
Plain washer 6x18x1
AP8911058
Not Available
15
Rubber spacer
AP8911008
Not Available

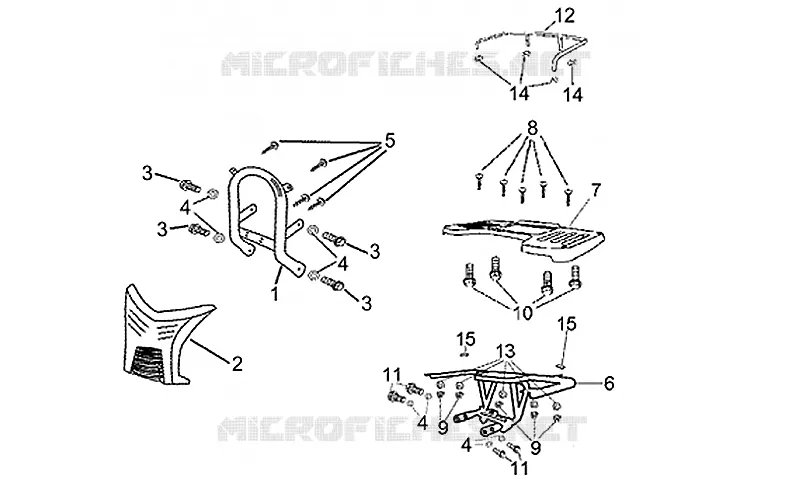

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
