Engine displacement
125
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog
Speed variator w/ clutch
6
Parts Diagram
Parts Catalog
Primary transm.
by
Transmission
Speed variator w/ clutch
21
21
14
7
7
6
5
4
3
3
2
1
1
21
20
19
18
17
16
15
13
12
11
10
9
8
8
22
23
24
25
1
Transmission sec.
AP8910770
Not Available
1
Pulley assy., driven
AP8910771
Not Available
2
Nut M12
AP8910377
Not Available
3
Vee-Belt 743x20x30
AP8910788
Not Available
4
Sec. fixed sheave, complete
AP8910789
Not Available
5
Speed variator w/ clutch
AP8910772
Not Available
6
Oil seal 34x41x4
AP8911138
Not Available
7
Guide pin
AP8910792
Not Available
8
Guide roller
AP8910793
Not Available
9
Sec.sliding sheave
AP8910791
Not Available
10
O-ring 36x2
AP8911035
Not Available
11
Cup A
AP8910796
Not Available
12
Spring
AP8910795
Not Available
12
Ressort B
AP8910794
Not Available
13
Cup
AP8910797
Not Available
14
Nut M28
AP8911012
Not Available
15
Clutch drum
AP8910773
Not Available
16
Sec. fixed sheave
AP8910790
Not Available
17
Bearing 6902U
AP8911117
Not Available
18
Stop ring IRTW-28
AP8911080
Not Available
19
Roller cage 20x29x18
AP8911120
Not Available
20
O-ring ETW-7
AP8910417
Not Available
21
Clutch spring
AP8910785
Not Available
22
plate
AP8910784
Not Available
23
Brake shoes
AP8910786
Not Available
24
Rubber spacer
AP8910787
Not Available
25
Shoe holder plate
AP8910783
Not Available

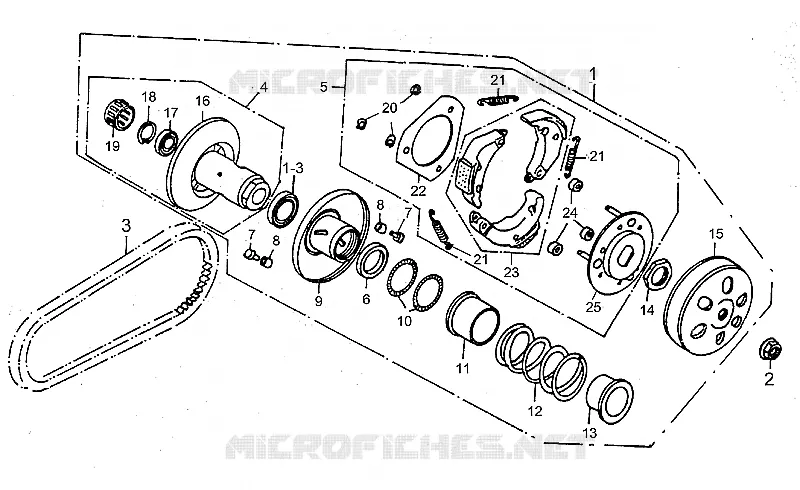

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
