1
Engine displacement
660
2
Model
RS
3
Year
2020
4
Trim
RS 660 4T 8V Euro 5 ABS
5
Parts Catalog

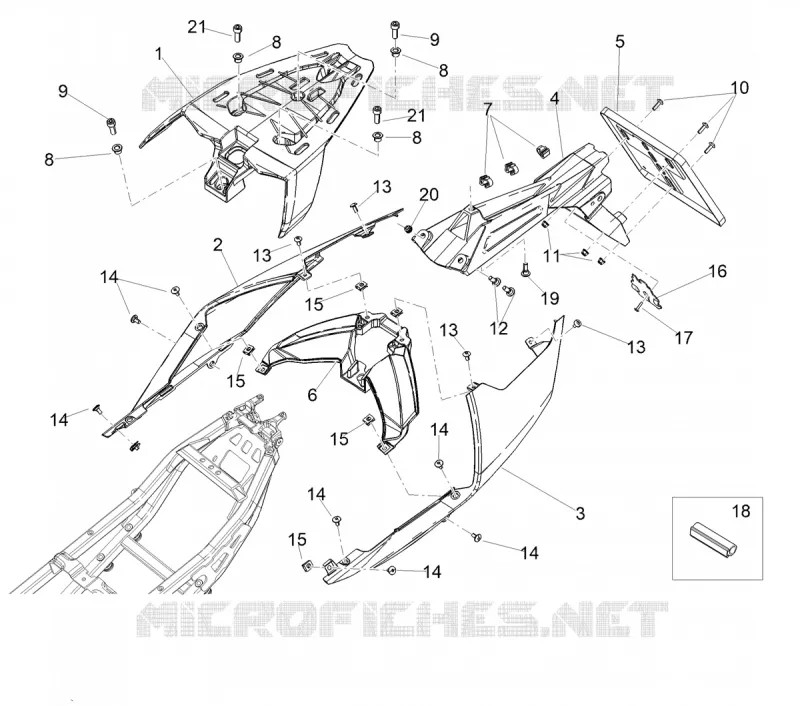

REAR FAIRINGS
6
Parts Diagram
Parts Catalog
IGNITION UNIT - FLYWHEEL
by
REAR MUDGUARD
REAR FAIRINGS
1
2
3
4
5
6
7
8
8
8
8
9
9
10
11
12
13
13
13
13
14
14
14
14
14
14
15
15
15
15
16
17
18
19
20
21
21
1
Poignée
2B006651
$178,59 Unit Price incl. VAT
2
Bavette D
2B006647
$33,61 Unit Price incl. VAT
2
RH rear fairing, yellow
2B006647000L01
$117,88 Unit Price incl. VAT
2
Bavette arrière d v.
2B006647000XDA
$205,30 Unit Price incl. VAT
2
Bavette arrière d v.
2B006647000XHL
$205,30 Unit Price incl. VAT
3
Bavette arrière g v.
2B006648000XDA
$206,64 Unit Price incl. VAT
3
Bavette G
2B006648
$35,77 Unit Price incl. VAT
3
Bavette arrière g v.
2B006648000XHL
$206,64 Unit Price incl. VAT
3
LH rear fairing, yellow
2B006648000L01
$117,88 Unit Price incl. VAT
4
Support de plaque d'immatriculation
2B006649
$89,26 Unit Price incl. VAT
5
Number plate holder
895914
$12,04 Unit Price incl. VAT
6
Bavette arrière interne
2B007364
$33,69 Unit Price incl. VAT
7
Black cable guide
AP8201727
$0,34 Unit Price incl. VAT
8
Bague à collerette
2B007778
$6,23 Unit Price incl. VAT
9
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
10
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
11
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
12
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
13
Hex socket screw Black M5x12
896174
$0,34 Unit Price incl. VAT
14
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
15
Nut D5
00G04401462
$1,10 Unit Price incl. VAT
16
Blocage support plaque d'immatriculation
2B006641
$6,75 Unit Price incl. VAT
17
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
18
Garniture adhesif
2B008368
$13,09 Unit Price incl. VAT
19
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
20
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
21
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
21
Vis TEFL M6X25
2B002570
$0,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
