1
Engine displacement
660
2
Model
RS
3
Year
2020
4
Trim
RS 660 4T 8V Euro 5 ABS
5
Parts Catalog
CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
SHOCK ABSORBER
by
PAD

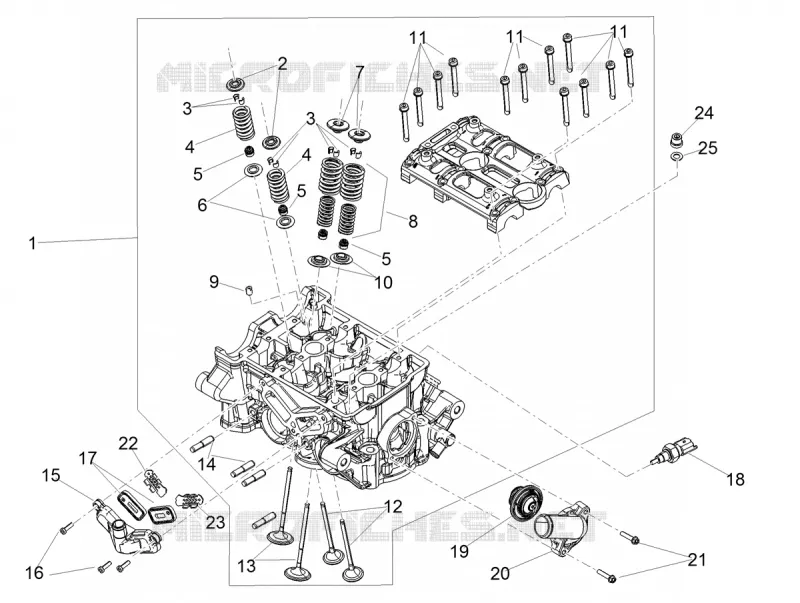

CYLINDER HEAD - VALVES
1
2
3
3
4
4
5
5
5
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Culasse cylindre complète
1A011626
Not Available
2
Cuvette supérieure échappement
1A020955
$12,43 Unit Price incl. VAT
3
Demi-clavette
1A016663
$3,05 Unit Price incl. VAT
4
Ressort soup. déch.
857030
$9,04 Unit Price incl. VAT
5
Bague d'étanchéité
1A016664
Not Available
6
Cuvette inférieure échappement
1A016658
$8,27 Unit Price incl. VAT
7
Cuvette supérieure admission
1A016656
$8,27 Unit Price incl. VAT
8
Intake spring kit
1A008432
$61,48 Unit Price incl. VAT
9
Goujon calibré
1A013954
$3,07 Unit Price incl. VAT
10
Cuvette inférieure admission
1A016657
$8,27 Unit Price incl. VAT
11
Vis M50X6
1A016762
$4,11 Unit Price incl. VAT
12
Soupape d’échappement
1A016659
$44,59 Unit Price incl. VAT
13
Soupape d’admission
1A013958
$25,82 Unit Price incl. VAT
14
Stud bolt m10x171
857035
$1,44 Unit Price incl. VAT
15
Cover reed valve
857044
$29,48 Unit Price incl. VAT
16
screw M5x16
857048
$3,70 Unit Price incl. VAT
17
Reed valve
857045
$19,14 Unit Price incl. VAT
18
Temperature gauge
640485
Not Available
19
Thermostat
888775
$54,73 Unit Price incl. VAT
20
Couvercle thermostat
1A012325
$31,00 Unit Price incl. VAT
21
Screw w/ flange M5x25
AP8152275
Not Available
22
Spark arrester
857047
$2,77 Unit Price incl. VAT
23
Spark arrester
857046
$4,89 Unit Price incl. VAT
24
Flanged nut M10x1
897434
$12,54 Unit Price incl. VAT
25
Washer 19 x 10,5 x 1,6
857208
$2,22 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
