1
Engine displacement
660
2
Model
RS
3
Year
2020
4
Trim
RS 660 4T 8V Euro 5 ABS
5
Parts Catalog

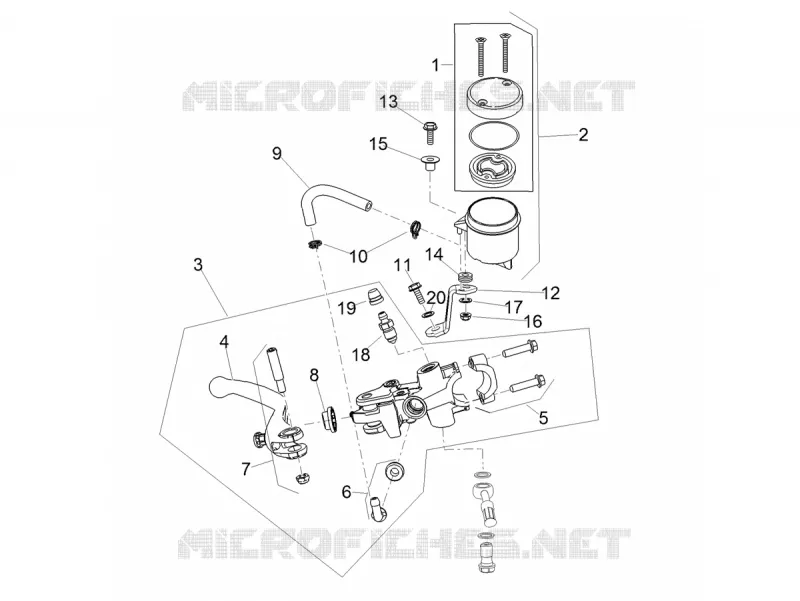

FRONT BRAKE MASTER CYLINDER
6
Parts Diagram
Parts Catalog
REAR WHEEL
by
TAIL LIGHTS
FRONT BRAKE MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Bouchon rés.huile freins
2B007234
$24,44 Unit Price incl. VAT
2
Réserv. huile freins
2B007235
$50,92 Unit Price incl. VAT
3
‌Maître-cylindre de frein avant
2B007724
$408,70 Unit Price incl. VAT
4
Front brake lever
2B002986
Not Available
5
U-bolt
893937
$14,61 Unit Price incl. VAT
6
Rear brake pump union
AP8213057
$6,80 Unit Price incl. VAT
7
Lever pin
AP8133666
$4,00 Unit Price incl. VAT
8
Front master cyl.cradle
B044585
$32,28 Unit Price incl. VAT
9
Tuyau de réservoir d'huile
2B005379
$5,75 Unit Price incl. VAT
10
Hose clamp D10,1
AP8101595
$0,32 Unit Price incl. VAT
11
Hex socket screw
AP8150340
$3,65 Unit Price incl. VAT
12
Sup.rés.huile freins
2B007732
$15,09 Unit Price incl. VAT
13
Hex socket screw M6x20
AP8152137
$0,23 Unit Price incl. VAT
14
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
15
T bush
AP8221023
$0,93 Unit Price incl. VAT
16
Stainless cap nut M6
AP8150474
$3,65 Unit Price incl. VAT
17
Curved spring washer 6x12
658830
$4,92 Unit Price incl. VAT
18
Air bleed valve
AP8133502
$6,80 Unit Price incl. VAT
19
Bleed valve cap
AP8113230
$14,66 Unit Price incl. VAT
20
Curved spring washer *
AP8150182
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
