1
Engine displacement
660
2
Model
RS
3
Year
2020
4
Trim
RS 660 4T 8V Euro 5 ABS
5
Parts Catalog

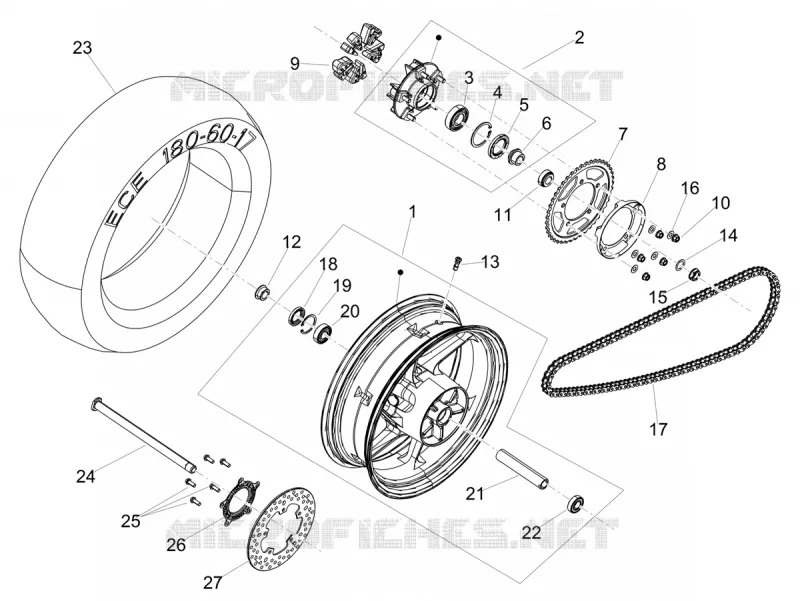

REAR WHEEL
6
Parts Diagram
Parts Catalog
Front wheel
by
FRONT BRAKE MASTER CYLINDER
REAR WHEEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Roue arrière 17"
2B005364
$410,93 Unit Price incl. VAT
1
Roue arrière 5.5x17"
2B008370
$383,53 Unit Price incl. VAT
2
Porte-couronne cpl.
2B006240
$178,03 Unit Price incl. VAT
3
Radial bearing
832848
$34,18 Unit Price incl. VAT
4
Snap ring
006662
$2,74 Unit Price incl. VAT
5
Bague d'étanchéité 40X62X7 NBR75
2B006559
$5,14 Unit Price incl. VAT
6
Entretoise joint élast.
2B006285
$35,55 Unit Price incl. VAT
7
Couronne Z=43
CM306201
$95,83 Unit Price incl. VAT
8
Protection de chaîne
2B006060
Not Available
9
Caoutchouc antidéchirures
2B006242
$13,94 Unit Price incl. VAT
10
DAX nut M10x1,25
2B002634
$6,12 Unit Price incl. VAT
11
Entretoise roue arrière
2B006283
$20,75 Unit Price incl. VAT
12
Entretoise roue arrière
2B006284
$19,44 Unit Price incl. VAT
13
Tubeless tyre valve 90°
AP8104728
$15,82 Unit Price incl. VAT
14
Wheel pin washer
AP8125687
$0,42 Unit Price incl. VAT
15
Rear wheel spindle nut
648708
Not Available
16
Rondelle plate
2B007292
$0,48 Unit Price incl. VAT
17
Chain
AP8107168
$164,33 Unit Price incl. VAT
18
Gasket ring 30x47x7
AP8125841
$3,70 Unit Price incl. VAT
19
Circlip
006647
$1,10 Unit Price incl. VAT
20
Roulement à billes 20x47x14
2B007581
$34,18 Unit Price incl. VAT
21
Entretoise int. roue ar.
2B006246
$27,40 Unit Price incl. VAT
22
Roulement
2B007580
$34,18 Unit Price incl. VAT
23
Pneu arrière "Pirelli"
2B007586
$710,95 Unit Price incl. VAT
23
Pneu arrière "Dunlop"
2B006830
$645,95 Unit Price incl. VAT
24
Goujon de la roue
2B006173
$62,04 Unit Price incl. VAT
25
Screw w/ flange M8x20
2B002416
$0,51 Unit Price incl. VAT
26
Phonic wheel ABS
890960
$18,18 Unit Price incl. VAT
27
Brake disc
85248R
$109,35 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
