Engine displacement
50
2
Model
RALLY
3
Year
1999
4
Trim
Rally H2O
5
Parts Catalog
Flywheel - Water pump
6
Parts Diagram
Parts Catalog
Carburettor II
by
Ignition unit
Flywheel - Water pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
1
Flywheel cover
AP8206589
Not Available
2
Entretoise
AP8206584
$5,90 Unit Price incl. VAT
3
Roulement
AP8206585
$28,21 Unit Price incl. VAT
4
Pump impeller drive key
AP8206582
Not Available
5
Outside circlip D8
AP8501467
$3,65 Unit Price incl. VAT
6
Pump impeller pin
AP8206577
$7,23 Unit Price incl. VAT
7
Pump drive pin grommet
AP8206572
Not Available
8
Washer D6
AP8206192
Not Available
9
Nut M10x1,25
AP8206183
Not Available
10
Washer D10,5x18x2
AP8206205
Not Available
11
Screw M6x16
AP8502563
Not Available
12
Flyw. stator gasket
AP8206485
Not Available
13
Cdi magneto assy
AP8206462
Not Available
14
Outside circlip D19
AP8206179
Not Available
15
Screw
AP8509211
Not Available
16
Roller D3x21,8
AP8508669
$3,65 Unit Price incl. VAT
17
Oil pump drive gear
AP8206746
Not Available
17
Oil pump drive gear
AP8206145
Not Available
18
Water pump shaft+Impeller
AP8206576
$23,53 Unit Price incl. VAT
19
Oil seal D10X18X4
AP8509130
$11,06 Unit Price incl. VAT
20
Screw M6x25
AP8206508
Not Available
21
O-ring D53,7x1,78
AP8206586
$3,65 Unit Price incl. VAT
22
Hose clamp
AP8206583
Not Available
23
Pump-cylinder hose
AP8206573
Not Available
24
Water pump casing, grey
AP8206580
Not Available
25
Flywheel cover
AP8206569
Not Available

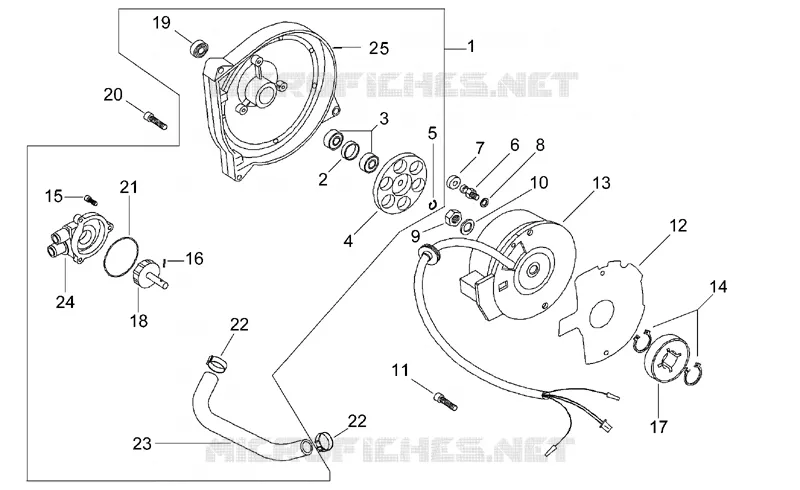

Find the detailed Flywheel - Water pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
