Engine displacement
50
2
Model
RALLY
3
Year
1999
4
Trim
Rally H2O
5
Parts Catalog
Clutch II
6
Parts Diagram
Parts Catalog
Clutch I
by
Transmission final drive
Clutch II
1
2
3
4
5
6
7
8
9
10
1
Sec. sheave spring
AP8206729
Not Available
1
Sec. sheave spring
AP8206191
Not Available
2
Brake shoes return spring
AP8206196
Not Available
2
Brake shoes return spring
AP8206730
Not Available
3
Centrifugal clutch assy
AP8206703
Not Available
3
Centrifugal clutch assy
AP8206731
Not Available
4
Nut M28x1
AP8206732
Not Available
4
Nut M28x1
AP8206199
Not Available
5
Clutch housing, complete
AP8206733
Not Available
5
Clutch housing, complete
AP8206135
Not Available
6
Nut m10x1 h=5,8
AP8206829
Not Available
6
Nut M10x1 H=8
AP8206186
Not Available
7
Rondelle élastique
AP8502471
$3,65 Unit Price incl. VAT
8
Speed variator w/ clutch
AP8206749
Not Available
8
Speed variator w/ clutch
AP8206748
Not Available
9
Brake shoes rubber D4x11
AP8206734
Not Available
10
Outside circlip D5
AP8206742
Not Available

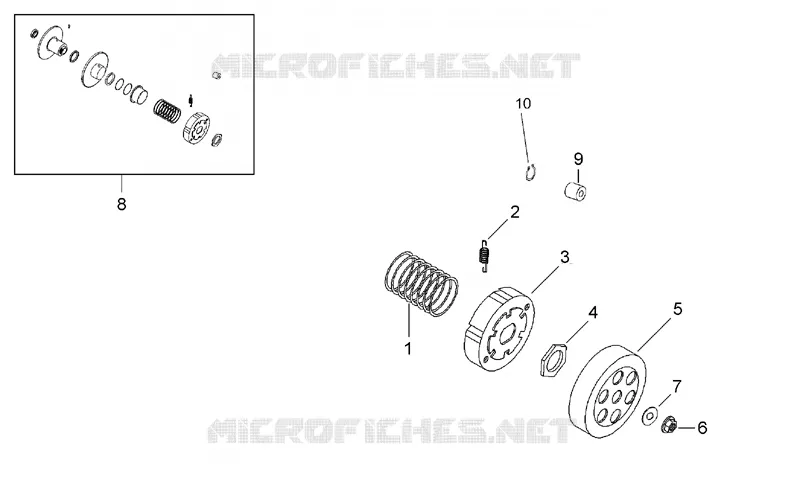

Find the detailed Clutch II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
