Engine displacement
50
2
Model
RALLY
3
Year
1999
4
Trim
Rally H2O
5
Parts Catalog
Supply - Oil pump
6
Parts Diagram
Parts Catalog
Transmission final drive
by
Carburettor I
Supply - Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Screw M6x20
AP8502564
Not Available
2
Intake manifold
AP8206466
Not Available
2
Intake manifold D12
AP8206565
Not Available
3
Reed valve assy
AP8206557
Not Available
4
Fuel intake valve gasket
AP8206486
Not Available
5
Hose collar
AP8206181
$8,01 Unit Price incl. VAT
6
Collier clic
AP8201225
$3,65 Unit Price incl. VAT
7
Hose clamp
AP8206711
Not Available
8
Oil pump assy.
AP8206747
Not Available
9
Screw
AP8508887
Not Available
10
Cover+rubber
AP8206570
$12,69 Unit Price incl. VAT
11
Screw
AP8206696
Not Available
12
Anti-condensate breather
AP8220548
Not Available
13
Collier
AP8102378
$0,21 Unit Price incl. VAT
14
Fuel pipe 5,5x10
AP8120952
Not Available

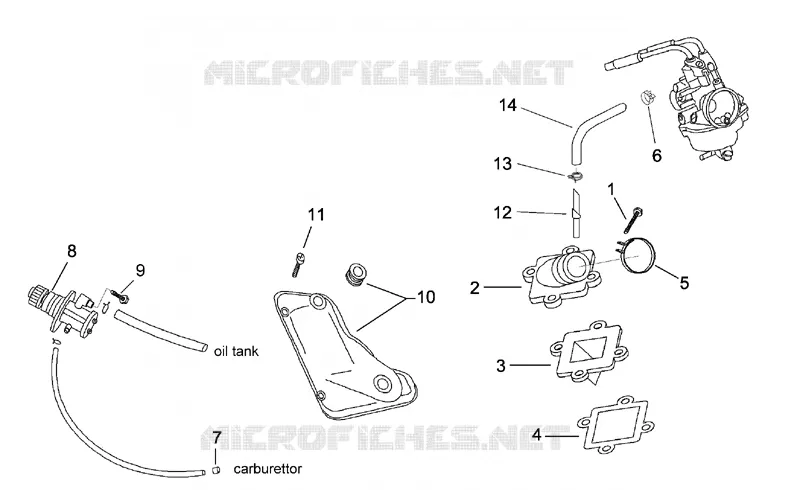

Find the detailed Supply - Oil pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
