1
Engine displacement
50
2
Model
RALLY
3
Year
1999
4
Trim
Rally H2O
5
Parts Catalog
Central stand - Connecting rod
6
Parts Diagram
Parts Catalog
Frame
by
Front fork I
Central stand - Connecting rod
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
13
13
14
14
14
15
16
17
1
Central stand
AP8232982
Not Available
2
Pivot béquille avec rondelles
AP8221296
$44,42 Unit Price incl. VAT
3
Caoutchouc
AP8220366
$4,62 Unit Price incl. VAT
4
Belleville spring
AP8121697
$3,65 Unit Price incl. VAT
5
Tampon fin de course béquille
AP8144030
$6,30 Unit Price incl. VAT
6
Goupille
AP8201431
$5,38 Unit Price incl. VAT
7
Ressort rappel béq.
AP8221204
$5,45 Unit Price incl. VAT
8
Ress.retour béq.int.
AP8221211
$4,86 Unit Price incl. VAT
9
Pivot support moteur
AP8221160
$6,60 Unit Price incl. VAT
10
Pivot fixation biellette
AP8221184
$5,38 Unit Price incl. VAT
11
Engine connecting element
AP8232818
Not Available
12
Connecting rod spring
AP8221215
Not Available
13
Rondelle en caoutchouc;
AP8220460
$5,38 Unit Price incl. VAT
14
Pin
AP8220396
$5,38 Unit Price incl. VAT
15
Rondelle fer plate
AP8152018
$3,65 Unit Price incl. VAT
16
Ecrou autobloqu.
AP8152301
$0,59 Unit Price incl. VAT
17
Silent-block, connecting rod
AP8220376
Not Available

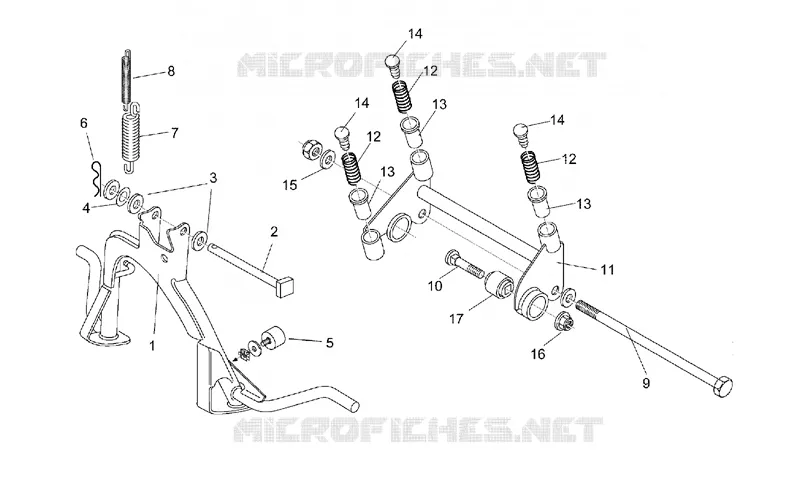

Find the detailed Central stand - Connecting rod APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
