Oil and fuel tank FOR Sonic H2O FROM 2007

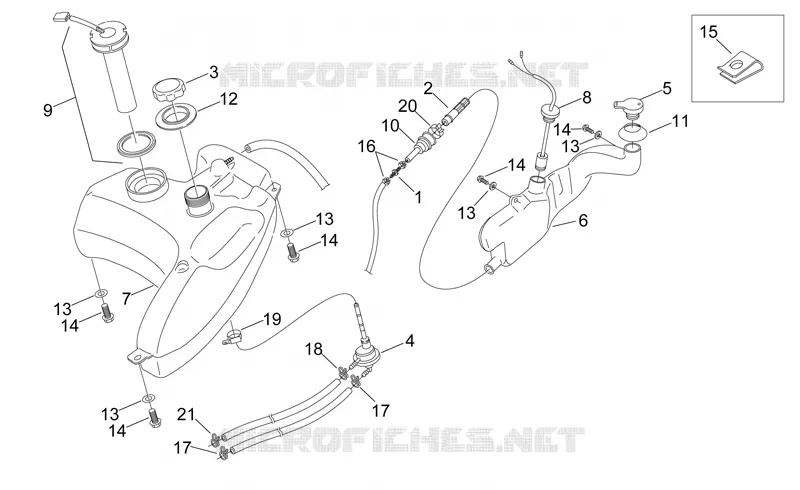

Oil and fuel tank

1

2-way union

AP8101944

$0,76 Unit Price incl. VAT

2

Mixer oil filter

AP8102224

$4,62 Unit Price incl. VAT

3

Fuel filler cap

AP8201757

$6,30 Unit Price incl. VAT

4

Vacuum fuel tap

AP8201824

$17,69 Unit Price incl. VAT

5

Oil filler cap

AP8220421

$5,38 Unit Price incl. VAT

6

Oil tank

AP8239089

$17,14 Unit Price incl. VAT

7

Fuel tank

AP8239092

Not Available

7

Fuel tank

AP8248132

Not Available

7

Fuel tank

AP8258807

Not Available

8

Oil reserve indicator

AP8212481

$10,35 Unit Price incl. VAT

9

Fuel level sensor

AP8124478

Not Available

10

Rubber spacer *

AP8102223

$4,62 Unit Price incl. VAT

11

Oil seal

AP8220195

$5,38 Unit Price incl. VAT

12

Filler cap rubber

AP8220472

Not Available

13

Washer 5,5x15x1,6*

AP8150013

$3,65 Unit Price incl. VAT

14

Screw w/ flange M5x20

AP8152274

$0,08 Unit Price incl. VAT

15

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

16

Hose clip D8x5,5*

AP8101770

$5,38 Unit Price incl. VAT

17

Hose clamp D8

AP8120179

$3,65 Unit Price incl. VAT

18

Hose clamp D9,1*

AP8102377

$3,65 Unit Price incl. VAT

19

Hose clamp D16-24x8*

AP8101573

$3,65 Unit Price incl. VAT

20

Hose clip D23,5x8*

AP8101743

$5,38 Unit Price incl. VAT

21

Hose clamp D10,1

AP8101595

$0,32 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
