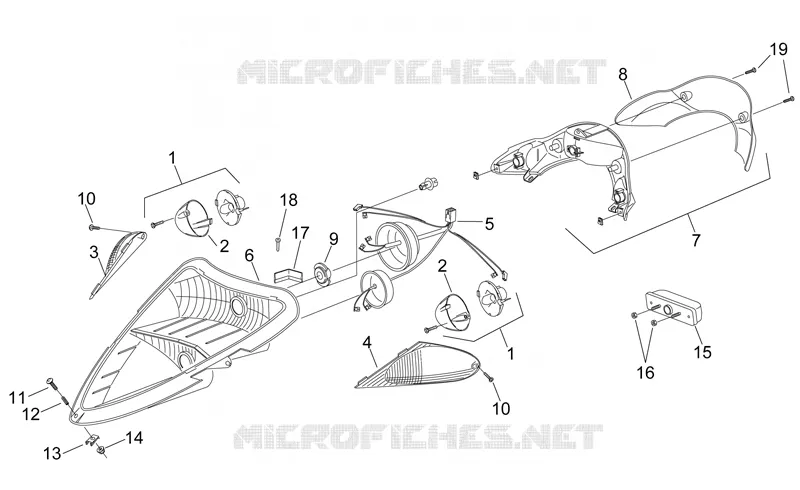

Lights FOR Sonic H2O FROM 2007

Lights

1

Turn indicator

AP8224045

$7,04 Unit Price incl. VAT

2

Int. turn indicator lens

AP8224046

$1,01 Unit Price incl. VAT

3

RH Turn indicator f. lens

AP8224043

Not Available

3

RH Turn indicator f. lens

AP8224316

Not Available

4

LH Turn indicator f.lens

AP8224317

Not Available

4

LH Turn indicator f.lens

AP8224044

Not Available

5

Headlight wiring w/harness

AP8212993

Not Available

5

Headlight wiring w/harness

AP8212889

Not Available

6

Headlight

AP8212990

Not Available

6

Headlight

AP8212882

Not Available

7

Taillight

AP8212887

Not Available

7

Taillight

AP8224318

Not Available

8

Taillight lens

AP8224047

Not Available

8

Taillight lens

AP8124949

Not Available

9

Lampholder

AP8224042

$4,83 Unit Price incl. VAT

10

Self-tap screw 3,9x14

AP8150413

$0,08 Unit Price incl. VAT

11

Screw M4x40

AP8150427

$0,11 Unit Price incl. VAT

12

Coil compress. spring *

AP8121710

$5,38 Unit Price incl. VAT

13

Clip

AP8201215

Not Available

14

Nut M4

AP8150204

$0,51 Unit Price incl. VAT

15

Number-plate light

AP8212989

Not Available

16

Self-locking nut M6

AP8152299

$0,34 Unit Price incl. VAT

17

plate

AP8224062

Not Available

18

Self-tap screw M2,9x6,5

AP8224063

$3,65 Unit Price incl. VAT

19

Self-tap pl.screw G.B.

AP8150484

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
