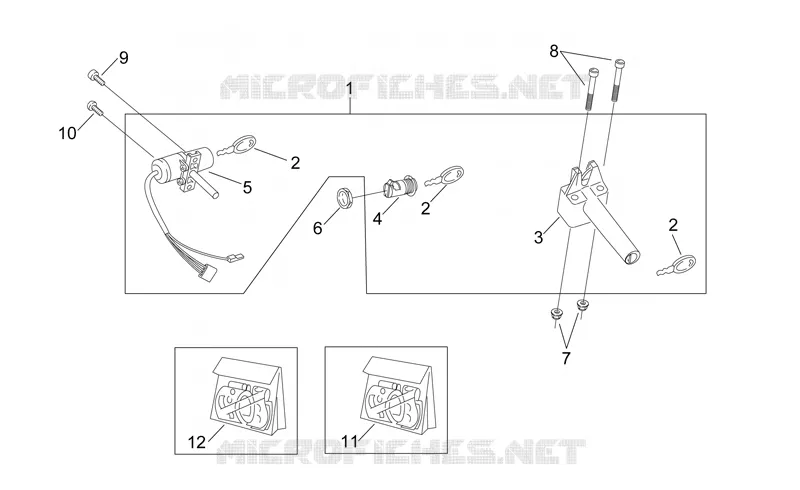

Decal - Lock hardware kit FOR Sonic H2O FROM 2007

Decal - Lock hardware kit

1

Lock kit

AP8202014

Not Available

2

Aprilia milled key

AP8102880

Not Available

3

Saddle lock

AP8202059

$16,48 Unit Price incl. VAT

4

Front box lock

AP8201734

Not Available

5

Main switch - steering lock

AP8202136

Not Available

6

Lock nut M22x1,5

AP8102523

$8,01 Unit Price incl. VAT

7

Self-locking nut M6

AP8152299

$0,34 Unit Price incl. VAT

8

Hex socket screw M6x45

AP8150403

$0,68 Unit Price incl. VAT

9

Hex socket screw M6x16

AP8150137

$3,70 Unit Price incl. VAT

10

Shear rivet M6x17

AP8152140

$3,65 Unit Price incl. VAT

11

Decal set

AP8277612

Not Available

11

Decal set

AP8257986

Not Available

11

Decal set

856213

$70,54 Unit Price incl. VAT

11

Decal set

AP8267450

Not Available

11

Decal set

AP8247894

Not Available

11

Decal set

AP8247901

Not Available

11

Decal set

AP8277301

Not Available

11

Decal set

AP8277611

Not Available

11

Decal set

AP8257947

Not Available

11

Decal set

AP8277729

$103,70 Unit Price incl. VAT

11

Decal set

AP8257406

Not Available

11

Decal set

852488

$111,98 Unit Price incl. VAT

11

Decal set

AP8247906

Not Available

11

Decal set

AP8277015

Not Available

11

Decal set

AP8267451

Not Available

11

Decal set

856493

$113,37 Unit Price incl. VAT

11

Decal set

856212

$69,44 Unit Price incl. VAT

11

Decal set

AP8267298

Not Available

11

Decal set

AP8277730

Not Available

12

Technical decal set

AP8166478

$36,15 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
