Normal exhaust unit FOR Sonic H2O FROM 2007

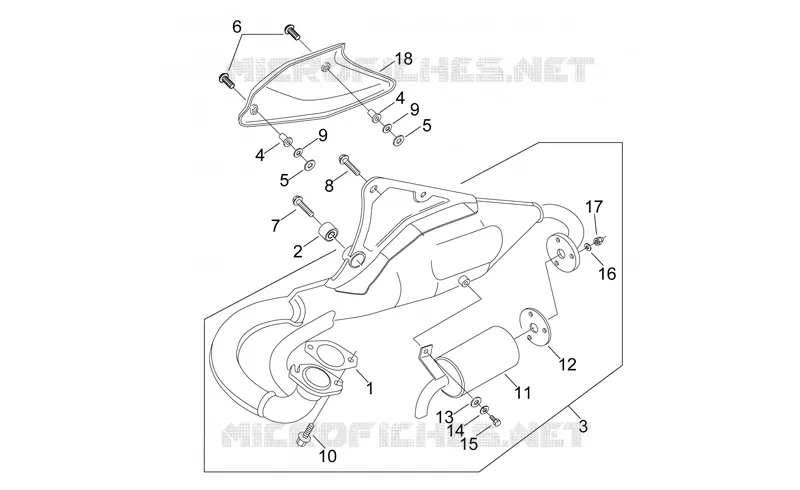

Normal exhaust unit

1

Exhaust pipe gasket

AP8219212

$4,82 Unit Price incl. VAT

2

Silent block, exhaust pipe

AP8220357

$6,30 Unit Price incl. VAT

3

Silencer -E-

AP8219399

Not Available

3

Silencer -F-

AP8219398

Not Available

3

Silencer

AP8219424

Not Available

3

Silencer -J-

AP8219400

Not Available

3

Silencer -B-

AP8219413

Not Available

4

T bush *

AP8121075

$3,65 Unit Price incl. VAT

5

Washer 6,6x18x1,6*

AP8150015

$0,16 Unit Price incl. VAT

6

Screw w/ flange M6x16

AP8152246

$0,27 Unit Price incl. VAT

7

Screw w/ flange

AP8152289

$3,65 Unit Price incl. VAT

8

Screw w/ flange M8x25

AP8152287

$0,34 Unit Price incl. VAT

9

Insulating washer

AP8120870

$3,65 Unit Price incl. VAT

10

Screw w/ flange

AP8152260

Not Available

11

Silencer

AP8219433

Not Available

12

Exhaust pipe gasket

AP8219434

Not Available

13

Washer 8,4x16x1,6

AP8150017

$3,65 Unit Price incl. VAT

14

Washer 8,4x13*

AP8152154

$0,16 Unit Price incl. VAT

15

Hex socket screw

AP8152112

$3,65 Unit Price incl. VAT

16

Washer 12,5x6,4*

AP8150380

$2,95 Unit Price incl. VAT

17

Stainless cap nut M6

AP8150474

$3,65 Unit Price incl. VAT

18

Exhaust pipe protection

AP8219425

$4,38 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
